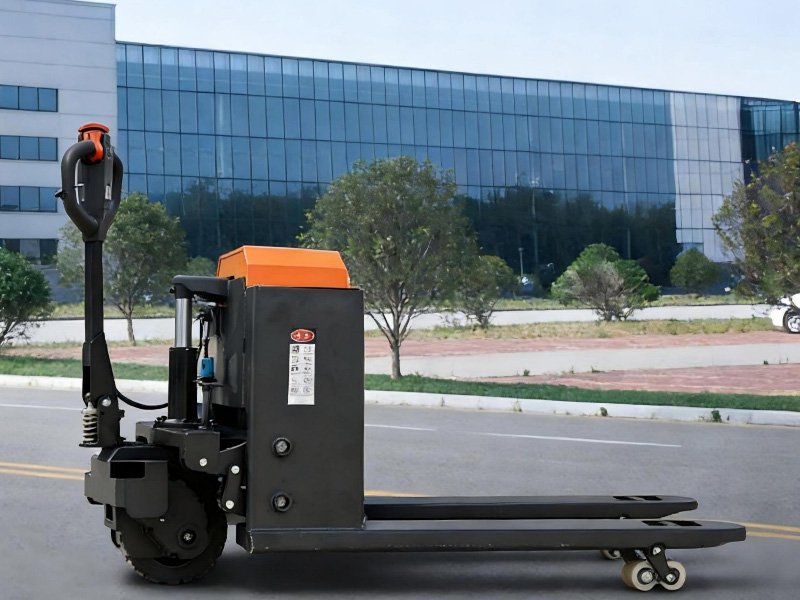

CBD2/3/5T Off-road Electric Pallet Jack 2–5 Ton Heavy Duty Pallet Truck

Description

Key Features:
– Load capacity options: 2000 kg / 3000 kg / 5000 kg
– 48V brushless maintenance-free drive motor
– High ground clearance (100 mm) for rough terrain
– Heavy-duty 300×100 mm solid rubber drive wheels
– Strong climbing ability for outdoor operations
– Compact structure for flexible movement
– Fully sealed drive system for durability
– Reinforced hydraulic system for stable lifting
– Modular battery design for easy replacement
– Ergonomic intelligent control handle

Advanced Design Highlights:
– Integrated gearbox with high torque transmission
– Double swing arm structure for better stability
– Hidden hydraulic pipelines for enhanced protection
– Strengthened wiring system and top guard
– Waterproof and dust-proof battery compartment

Main Components:
– Heavy-duty hydraulic cylinder with reinforced structure
– High-pressure oil pipe and durable connectors
– Wear-resistant wheels and braking system
– Intelligent control handle with fault monitoring
– High-strength steel fork structure

Specifications (Typical Model):
– Model: CBD2T / CBD3T / CBD5T
– Load Capacity: 2000 – 5000 kg
– Load Center: 600 mm
– Operation Type: Walkie
– Drive Motor: 1500 W
– Lifting Motor: 3000 W
– Battery: 48V (Lead-acid or Lithium optional)
– Fork Length: 1150 mm
– Fork Width: 550 / 665 mm
– Min Fork Height: 85 mm
– Max Lifting Height: 200 mm
– Turning Radius: 1550 mm
– Travel Speed (Loaded/Unloaded): 4 / 4.5 km/h
– Climbing Ability: 7% (loaded) / 16% (unloaded)
– Ground Clearance: 100 mm
– Overall Weight: approx. 290 kg (varies by model)

Applications:
The CBD off-road pallet jack series is widely used in:
– Construction sites
– Outdoor logistics and storage yards
– Ports and terminals
– Industrial plants with uneven floors
– Agriculture and rural material handling
– Mining and heavy-duty environments

Why Choose Our Off-road Pallet Jack Series:
– Designed for rough terrain where standard pallet jacks fail
– Multiple capacity options for different needs
– Powerful and stable performance
– Durable construction for long-term use
– Easy operation and low maintenance
– Factory-direct pricing with global shipping support

The CBD2/3/5T series provides a reliable and efficient solution for outdoor pallet handling, ensuring strong performance even in the most challenging environments.
