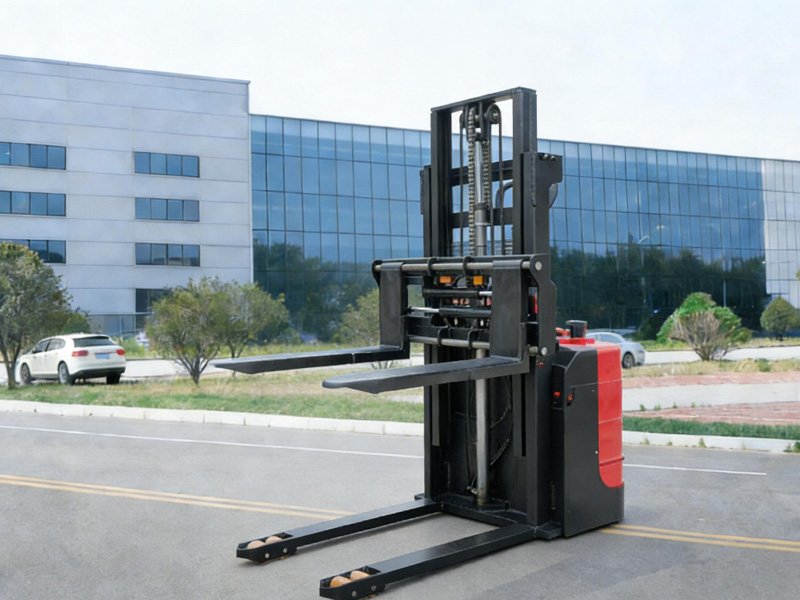

CDD15/20 Electric Stacker with Side Shift 1.5–2.0 Ton Mobile Side Loading

Description

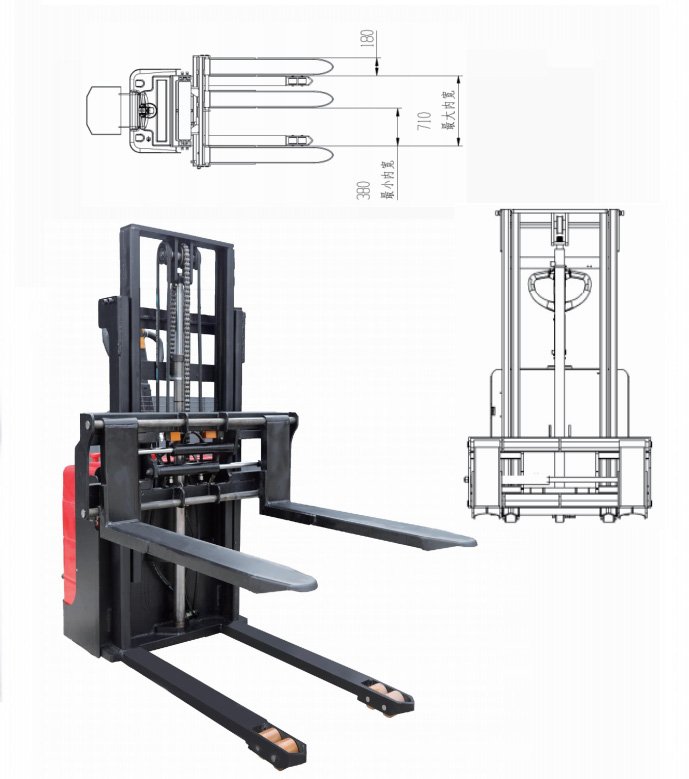

Electric Stacker with Side Shift 1.5–2.0 Ton Mobile Side Loading drawing

Key Features:
– Load capacity: 1500 kg / 2000 kg
– Full electric drive and lifting system
– Integrated side shift function for precise positioning
– Improved efficiency in narrow aisle operations
– Strong and durable steel structure
– Smooth lifting and stable performance
– Compact design for warehouse environments
– Low noise and low maintenance AC motor
– Suitable for intensive daily use

Specifications:
– Model: CDD15 / CDD20
– Load Capacity: 1500 kg / 2000 kg
– Operation Type: Walkie / Rider (optional)
– Power Type: Full Electric
– Lifting Height: up to 3000–5000 mm (optional)
– Side Shift Range: customizable
– Battery: 48V (lead-acid or lithium optional)
– Drive Motor: AC Motor
– Fork Length: 1070 mm
– Steering: Mechanical / electric assist

Applications:
The CDD electric stacker with side shift is ideal for:
– Warehouse and logistics centers
– Narrow aisle storage systems
– Supermarkets and distribution centers
– Manufacturing facilities
– Loading and unloading operations

Why Choose Our Electric Stacker:
– Side shift improves positioning accuracy and efficiency
– Ideal for tight warehouse environments
– Reliable performance with strong structural design
– Energy-saving electric system
– Factory-direct pricing with strict quality control
– Fast delivery and global shipping support

The CDD15/20 side shift electric stacker is an excellent solution for businesses looking to improve handling efficiency and precision in modern warehouse operations.
