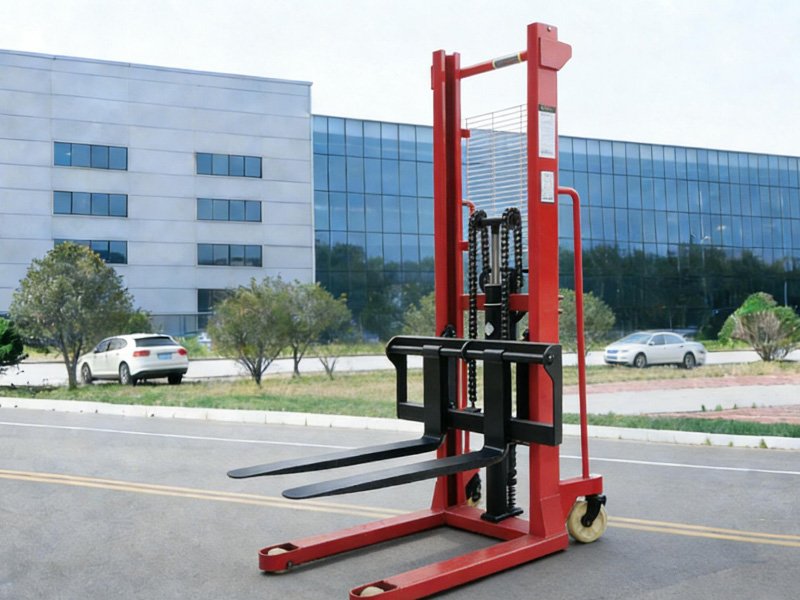

CTY Manual Hydraulic Stacker 0.5–3 Ton Hand Operated Pallet Stacker

Description

Manual Hydraulic Stacker 0.5–3 Ton Hand Operated Pallet Stacker Main Components

Key Features:
– Load capacity range: 500 kg to 3000 kg
– Manual hydraulic lifting system (no power required)
– High-strength steel structure for durability
– Smooth and stable lifting performance
– Anti-burst oil cylinder for enhanced safety
– Reinforced hydraulic system with safety valves
– Compact and easy-to-operate design
– Low maintenance and long service life
– Cost-effective solution for small businesses

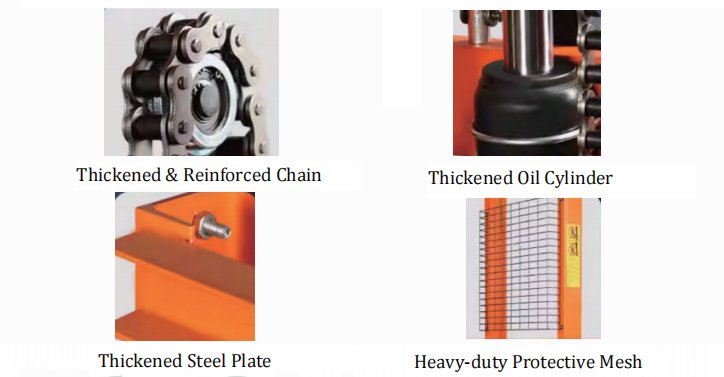

Main Components:
– Thickened and reinforced lifting chain
– Heavy-duty hydraulic oil cylinder
– Thickened steel plate structure
– Protective safety mesh for operator protection

Specifications (Typical Model CTY-10):
– Model: CTY-5 / CTY-10 / CTY-20 / CTY-30
– Load Capacity: 1000 kg (customizable for other models)
– Lifting Height: 1300 mm – 2500 mm
– Total Mast Height: 2040 mm
– Overall Length: 1360 mm
– Overall Width: 730 mm
– Fork Length: 850 mm
– Inner Fork Width: 460 – 700 mm adjustable
– Outer Fork Width: 580 mm
– Net Weight: approx. 125 kg

Applications:
The CTY manual stacker is widely used in:
– Warehouses and storage facilities
– Workshops and factories
– Retail and supermarkets
– Light-duty material handling tasks
– Loading and unloading goods in tight spaces

Why Choose Our Manual Stacker:
– No electricity required, suitable for flexible use
– Affordable and economical solution
– Strong and durable structure
– Safe hydraulic system design
– Easy operation with minimal training
– Factory-direct pricing and global delivery support

The CTY manual hydraulic stacker is the perfect choice for businesses looking for a simple, reliable, and budget-friendly lifting solution.
