Description

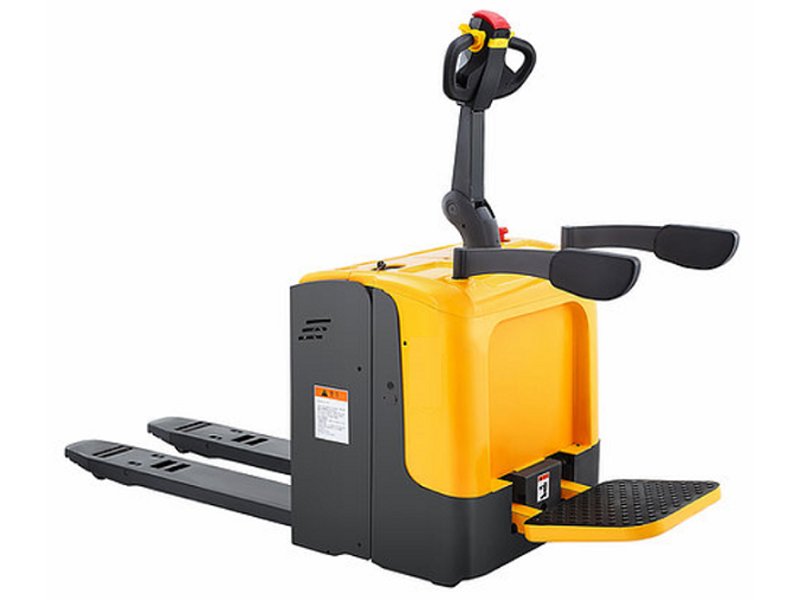

“The Stand-on Pallet Truck, often referred to in North America as an Electric Rider Pallet Jack, is designed for high-capacity, long-distance warehouse transport…”
Technical Specifications
Built for heavy-duty, long-range performance.
| Performance Metric | Specifications |
| Load Capacity | 2000kg / 2500kg / 3000kg |
| Travel Speed (Full Load) | 6.0 – 7.5 km/h |
| Travel Speed (Unloaded) | Up to 9.0 km/h |
| Drive Motor | High-Power AC Brushless Motor (1.5kw – 2.5kw) |
| Battery Type | 24V/210Ah Lead-Acid or High-Density Lithium |
| Operator Platform | Foldable, Heavy-Duty Anti-Vibration Design |
| Safety Guard Rails | Integrated Foldable Side Protective Arms |
Why the Stand-on Model is a Game-Changer?
■ Superior Travel Speed & Productivity
Time is money in logistics. Compared to standard walkie trucks (max 4.5 km/h), our stand-on model doubles your transport speed. This means your operators can move 30% more pallets per shift, directly boosting your bottom line.
■ Ergonomic Foldable Platform
The platform features advanced shock absorption to protect the operator’s joints during long shifts. When working in tight spaces or inside a delivery truck, the platform and side arms can be folded, instantly transforming it into a compact walkie-style truck.
■ AC Drive Technology (Maintenance-Free)
Equipped with a vertical AC drive motor, our truck provides powerful acceleration and consistent torque even on inclines. The AC system eliminates carbon brushes, reducing maintenance requirements and extending the service life of the powertrain.
■ Enhanced Safety at High Speeds
Safety is paramount when traveling at 9 km/h. Our trucks include:
-
Automatic Speed Reduction: Automatically slows down when cornering to prevent tipping.
-
Side Guard Protection: Heavy-duty steel arms keep the operator securely on the platform during high-speed maneuvers.
-
Electric Power Steering (EPS): Optional EPS ensures effortless control, even when carrying a full 3-ton load.
Primary Applications
-
Large Distribution Centers: Moving goods across thousands of square meters.
-
Cross-Docking: Rapidly transferring loads from one trailer to another.
-
Manufacturing Hubs: Supplying raw materials to distant production lines.
-
Heavy-Duty Loading: Ideal for 24/7 operations in food, beverage, and automotive logistics.
Battery Solutions: Lead-Acid vs Lithium
We offer two power configurations to suit your budget and usage:
-
Industrial Lead-Acid: Cost-effective and reliable for standard 8-hour shifts.
-
Advanced Lithium-Ion: Supports fast charging (full charge in 2 hours) and opportunity charging during breaks. Perfect for 3-shift operations without needing spare batteries.
FAQ
Q: Is it safe to use a stand-on pallet truck on ramps?
A: Yes. Our models feature an anti-rollback system and electromagnetic braking, ensuring the truck stays firm and controllable on inclines.
Q: Can it be used as a walkie truck?
A: Absolutely. By folding the platform and side arms, the truck becomes a standard pedestrian-operated unit, making it easier to maneuver in narrow aisles or inside containers.
Q: What maintenance does the AC motor require?
A: The AC motor is virtually maintenance-free as it has no wearable brushes. We recommend regular inspection of the gearbox oil and wheel wear for optimal performance.
Q: What is the difference between a Stand-on Pallet Truck and a Rider Pallet Jack?
A: There is no structural difference. “Rider Pallet Jack” is the preferred term in the US, while “Stand-on Pallet Truck” is the standard term in international shipping and European logistics. Both refer to electric pallet jacks equipped with a foldable or fixed operator platform.
