In modern logistics, square footage is your highest recurring cost. If your warehouse aisles are designed for standard counterbalance forklifts (12–13 feet wide), you are effectively 'wasting' up to 40% of your potential storage space.
Narrow Aisle (NA) and Very Narrow Aisle (VNA) forklifts are not just tools; they are spatial investment strategies. This guide explains how the right equipment can double your pallet positions without moving to a larger facility.

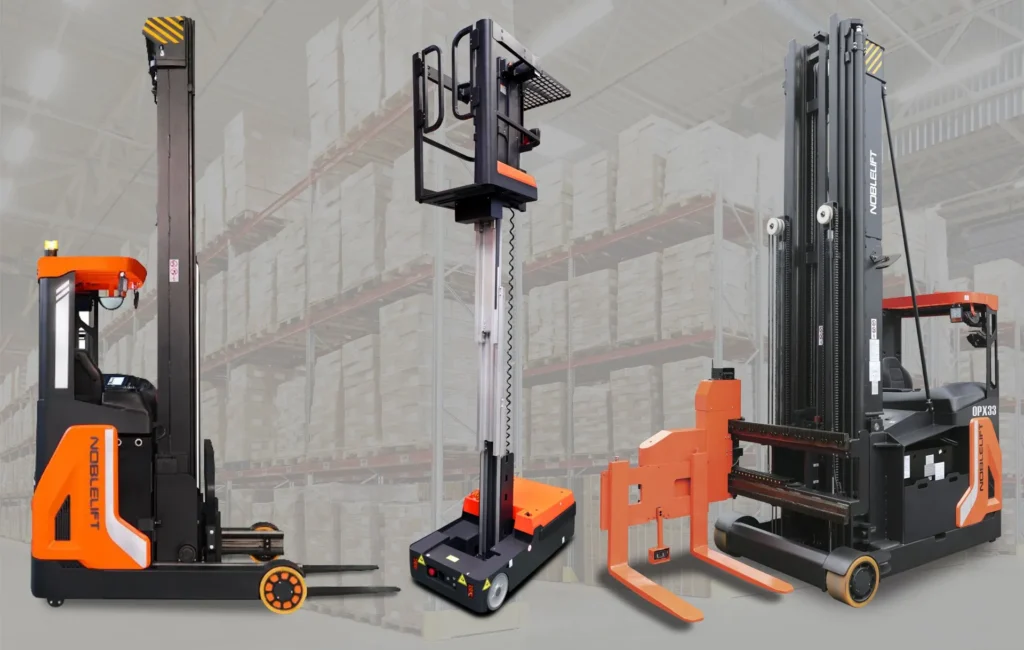

Narrow Aisle Forklifts
1. What Defines a 'Narrow Aisle' Forklift?
A standard forklift needs a wide 'turning circle' to place a load. A Narrow Aisle forklift is engineered to operate in aisles as slim as 8 to 10 feet, while VNA equipment can go down to 5.5 feet.
The Math of Space:
-
Standard Aisle: 12 ft wide.
-
Narrow Aisle: 8.5 ft wide.
-
Result: In a 50,000 sq. ft. warehouse, switching to Narrow Aisle can allow for 2-3 additional racking rows, increasing storage capacity by 25%–35% instantly.
2. Top 3 Types of Narrow Aisle Forklifts
A. Reach Trucks (The Industry Standard)
The most common NA solution. The mast extends forward (reaches) to pick up loads, allowing the truck's body to stay compact.
-
Best For: High racking (up to 30+ feet).
-
Key Spec: Outriggers provide stability, allowing for a smaller counterbalance weight.
B. Stand-Up Counterbalance
A hybrid between a standard forklift and a reach truck.
-
Best For: Busy warehouses where the operator gets off the truck frequently.
-
Key Spec: A much shorter chassis than sit-down models, allowing it to turn in tight corners.
C. Articulated Forklifts (Swing-Mast)
The 'Game Changer' for VNA. The front mast pivots left and right.
-
Best For: Extreme density. The truck doesn't turn in the aisle; only the mast does.
-
Key Spec: Can operate in aisles as narrow as 6 feet.
3. Technical Depth: AST and Turning Radius
Pro Tip: In the forklift industry, we don’t just look at the machine size; we look at the AST (Aisle Stacking Width). This is the real-world footprint your forklift needs to turn 90 degrees with a pallet. Always calculate your AST based on your maximum load length to ensure zero-collision operation.
-
AST Calculation: This is the total of the Turning Radius + Load Length + Safety Clearance.
-
Professional Tip: When choosing an NA forklift, always calculate your AST with your longest pallet. A machine that works for a 40-inch pallet might fail if you occasionally handle 48-inch loads.
4. The Hidden Benefits (Beyond Space)
-
Battery Efficiency: Most NA forklifts are electric. Maoxiang’s Lithium-ion NA series supports opportunity charging, meaning the truck stays in the aisle instead of traveling to a charging room.
-
Visibility & Ergonomics: Side-stance operation reduces neck strain and improves visibility when navigating tight gaps between racks.
-
Precision Hydraulics: In narrow gaps, there is zero room for error. High-precision proportional valves are required to ensure the forks don't hit the racking.
❓ FAQ: People Also Ask (Targeting Google Snippets)
Q: Can a Narrow Aisle forklift work on a loading dock? A: While possible, it is not ideal. Their small, hard tires are designed for smooth concrete. Using them on dock plates or uneven surfaces can lead to 'shaking,' which damages sensitive electronic components.
Q: Is a Narrow Aisle forklift more expensive? A: The upfront cost is higher than a standard diesel forklift. However, when you subtract the cost of renting a larger warehouse, the Narrow Aisle forklift usually pays for itself within 12 months.
Q: Do I need special racking for Narrow Aisle forklifts? A: Not necessarily, but your racking must be precisely aligned. Even a 2-inch misalignment in a narrow aisle can prevent the truck from operating safely.
🏆 Maoxiang: Maximizing Every Square Inch
At Maoxiang, we specialize in Compact Power. We know that for many of our global clients, the warehouse is already full. Our 2026 Narrow Aisle lineup is built to solve the 'Space-Trap':
-
Maoxiang Reach Series: Features a compact 48V Lithium system and a reinforced mast that maintains 100% capacity even at 20-foot heights.
-
Electric Stand-Up Units: Designed for quick-paced e-commerce environments where agility and tight turning radii are non-negotiable.
-
VNA Precision: Our hydraulic systems use German-engineered seal kits to ensure zero-drift fork placement in the tightest aisles.
Stop paying for air Start storing more pallets.
