Forklifts are indispensable in modern material handling, but the true backbone of any forklift is its mast. Whether you’re managing a busy warehouse, a logistics hub, or a manufacturing plant, understanding forklift mast types is crucial for operational efficiency, safety, and cost-effectiveness. As we step into 2026, advancements in mast technology offer a variety of options tailored to diverse industrial needs.
This article dives deep into the different forklift mast types, their components, and provides expert tips on selecting the best mast for your specific applications. Whether you’re a procurement manager, warehouse operator, or industry professional, this guide will help you make an informed decision.

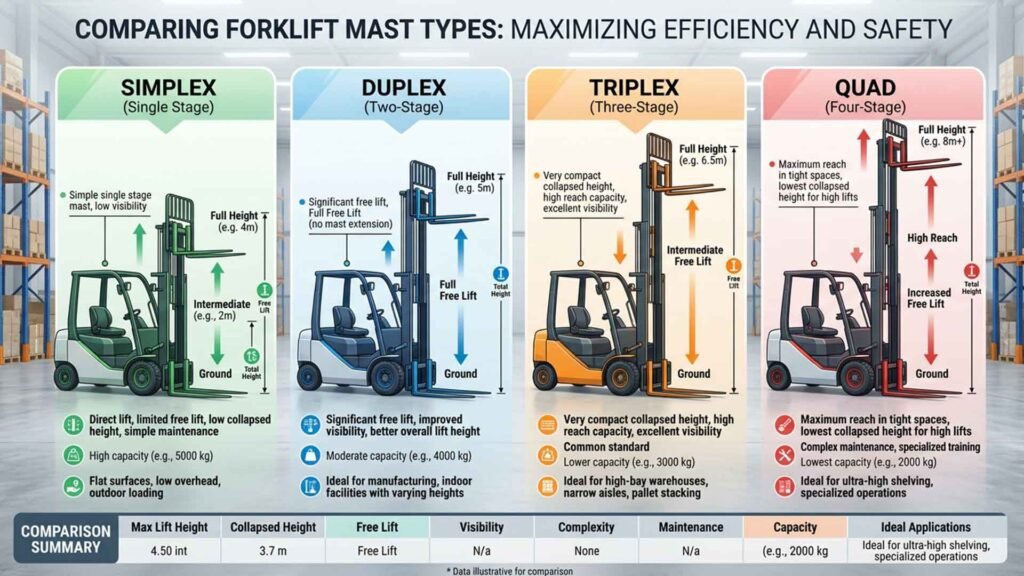

forklift mast types
What Is a Forklift Mast?
The forklift mast, often referred to as the upright, is the vertical assembly at the front of the forklift responsible for lifting, lowering, and positioning loads. It transforms a simple transport vehicle into a precision lifting machine, enabling goods to be stacked at various heights.
In 2026, forklift masts have evolved with improved hydraulic systems, stronger materials, and more complex multi-stage designs, offering greater versatility and durability. The mast directly impacts:
- Maximum lift height
- Free lift capability
- Operational safety
- Warehouse throughput
Key Components of a Forklift Mast
Understanding the mast’s anatomy is essential before exploring its types. Key components include:
- Mast Rails: Interlocking steel channels guiding vertical movement, providing stability and rigidity.
- Carriage: The platform sliding along the rails that holds the forks or attachments.
- Forks: Load-bearing arms that directly lift pallets or materials.
- Lifting Cylinder: Hydraulic cylinder powering the vertical movement.
- Tilting Cylinder: Controls forward/backward tilt for load stability.
- Lifting Chain: Heavy-duty chain that multiplies lifting force.
- Pulley (Block): Guides the lifting chain for smooth operation.
- Mast Rollers & Bearings: Reduce friction and wear, ensuring smooth travel.
- Guide Rails & Gaskets: Maintain alignment and protect components.
- Hydraulic Seals: Prevent fluid leakage, maintaining performance.
Common Forklift Mast Types in 2026
Forklift masts are classified primarily by the number of lifting stages. Each type serves different operational requirements:
1. Single-Stage Mast (Simplex Mast)
- Structure: One fixed set of rails.
- Lift Height: Typically under 3 meters.
- Free Lift: None.
- Best For: Low-height applications such as basements, small warehouses, or light-duty tasks.
- Advantages: High rigidity, low cost, simple design.
- Limitations: Limited lift height and no free lift make it unsuitable for modern high-racking environments.
2. Two-Stage Mast (Duplex Mast)
- Structure: Two sets of telescoping rails.
- Lift Height: Approximately 3.5 to 5 meters.
- Free Lift: Limited or partial free lift.
- Best For: General warehousing, loading docks, and stacking tasks.
- Advantages: Balanced lift and lowered height, good visibility, moderate complexity.
- Considerations: Verify actual free lift if working inside containers or trailers.
3. Three-Stage Mast (Triplex Mast)
- Structure: Three nested telescoping rails.
- Lift Height: Around 4 to 6.5 meters or more.
- Free Lift: Full free lift (1.5 to 2 meters) common.
- Best For: High-racking warehouses, container loading/unloading, low headroom environments.
- Advantages: High lift with compact lowered height, versatile.
- Trade-offs: More complex maintenance, potentially reduced visibility.
4. Four-Stage Mast (Quadruplex Mast)
- Structure: Four telescoping stages.
- Lift Height: 6 to 8.5 meters or higher.
- Free Lift: High free lift.
- Best For: Ultra-high racking, cold storage, automated warehouses.
- Advantages: Maximum reach.
- Drawbacks: Complex, heavier, higher maintenance, and visibility challenges.
Understanding “Free Lift” vs. “Standard Lift”
- Free Lift: The height the forks can be raised without the mast extending vertically. Essential for operations inside containers, trailers, or low-ceiling areas.
- Standard Lift: The total lift height including mast extension.
Choosing a mast with adequate free lift prevents collisions with overhead structures during loading/unloading in confined spaces.
How to Choose the Right Forklift Mast: 5 Expert Tips
Selecting the right mast goes beyond just picking a type. Consider these critical factors:
1. Free Lift Height
Prioritize full free lift for operations in low-clearance environments such as refrigerated containers or mezzanines. Confirm the free lift value rather than assuming based on mast type.
2. Lowered (Folded) Height
Measure all access points like dock doors, trailers, and warehouse entrances. The mast’s collapsed height must fit through these spaces safely.
3. Rated Load and Operational Intensity
Match the mast’s load capacity with the forklift’s rated load. For high-frequency or heavy-duty use, opt for reinforced rails and heavy-duty hydraulic components.
4. Maximum Fork and Extended Mast Height
Ensure the maximum fork height exceeds your tallest shelving by at least 15-20 cm for safe load placement. Also, verify the mast’s fully extended height to avoid hitting ceiling fixtures.
5. Brand and After-Sales Support
Invest in reputable brands like SANY or Liugong known for quality manufacturing, reliable hydraulic systems, and excellent service networks. A dependable mast reduces downtime and protects your investment.
Forklift Mast Types Comparison Table (2026)
| Mast Type | Lift Height Range | Free Lift | Best For | Key Advantages | Limitations |
|---|---|---|---|---|---|
| Single-Stage | 2.5 - 3.5 m | None | Low clearance, simple tasks | Rigid, low cost | Limited lift, no free lift |
| Two-Stage | 3.5 - 5.0 m | Limited | General warehousing | Balanced height & passability | Moderate complexity |
| Three-Stage | 4.0 - 6.5 m | Full (1.5 - 2.0 m) | Container/truck loading, low headroom | Versatile, high ROI | Complex maintenance, visibility |
| Four-Stage | 6.0 - 8.5 m | High | Ultra-high racking, cold storage | Maximum reach | Heavy, complex, higher maintenance |
FAQs About Forklift Mast Types
Q1: What is a mast on a forklift?
A mast is the vertical lifting assembly that raises and lowers the forks, consisting of rails, hydraulic cylinders, chains, and the carriage.
Q2: What’s the difference between a single-stage and a three-stage mast?
A single-stage mast has one fixed rail and limited lift height with no free lift, while a three-stage (triplex) mast has three telescoping rails, offering higher lift and full free lift for low-clearance operations.
Q3: Are lifting height and mast extended height the same?
No. Lifting height is the distance from the ground to the fork tips when fully raised. Mast extended height is the total height of the mast at full extension, usually higher than lifting height.
Q4: Can forklift masts be changed after purchase?
Changing a mast post-delivery is complex due to compatibility, hydraulic systems, and capacity ratings. It’s best to confirm mast specifications before purchase.
Conclusion: Aligning Mast Choice with Your Operational Needs
In 2026, forklift mast selection is a strategic decision that directly impacts your warehouse’s efficiency, safety, and total cost of ownership. Whether you choose a simple single-stage mast for low lifts or a sophisticated four-stage mast for ultra-high racks, always base your choice on measured site constraints, load requirements, and operational intensity.
Remember to verify key parameters such as free lift, collapsed height, maximum fork height, and residual capacity. Partnering with trusted brands ensures quality, durability, and excellent after-sales support.
Ready to optimize your forklift fleet? Take the time to assess your material handling needs carefully, consult with us, and select the mast that delivers the best performance and ROI for your business.
