The 4 Main Sections
Every counterbalance forklift has four major assemblies:
| Section | What It Includes | What It Does |
|---|---|---|
| Mast & Carriage | Mast, rails, carriage, forks, chains | Lifts and positions the load |
| Chassis & Counterweight | Frame, counterweight, overhead guard, floor | Carries everything, balances the load |
| Drive & Steering | Drive axle, wheels, steering axle, transmission | Moves and turns the truck |
| Power System | Battery/engine, motor, hydraulics, controller | Provides energy to lift and drive |

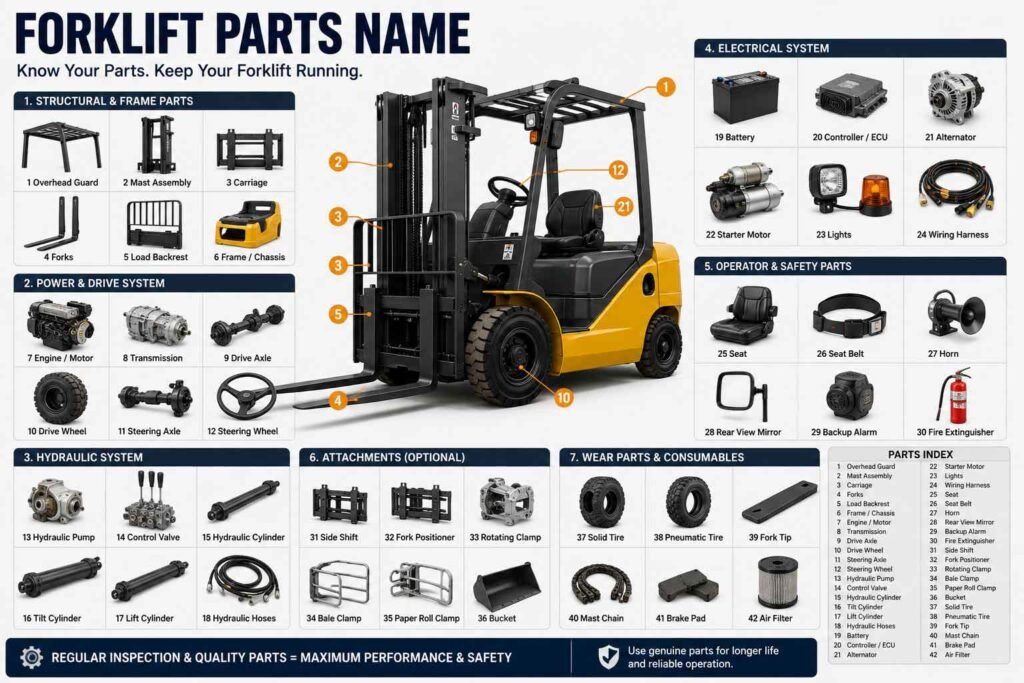

Forklift Parts Name
1. Mast & Carriage Parts (The Lifting System)
| Part Name | What It Does | Typical Replacement Cost | Most Common Failure |
|---|---|---|---|
| Mast | The vertical structure that lifts the carriage | $2,000–$6,000 | Bent rails after collision |
| Mast rails | The channels the carriage slides in | $800–$2,000 | Wear, scoring, misalignment |
| Carriage | The frame that holds the forks | $600–$1,500 | Bent or cracked forks mount |
| Forks | The prongs that carry the load | $400–$1,200 per pair | Heel wear, bending, cracks |
| Lift chains | Steel chains that raise the carriage | $200–$500 | Stretching, kinks, snaps |
| Lift cylinder | Hydraulic cylinder that raises the mast | $800–$2,000 | Seal leaks, scored rod |
| Tilt cylinder | Tilts the mast forward/back | $500–$1,500 | Seal leaks |
| Mast rollers | Bearings that guide carriage travel | $100–$300 each | Flat spots, wear |
| Side-shifter | Moves forks left/right (attachment) | $800–$2,500 | Hydraulic leak, bent frame |
| Fork positioner | Adjusts fork width (attachment) | $1,000–$3,000 | Cylinder leak |
The chain rule: If a lift chain snaps while a load is elevated, the load drops. Inspect chains for stretch (compare to chain gauge) and kinks before every shift.
2. Chassis & Body Parts
| Part Name | What It Does | Typical Replacement Cost | Most Common Failure |
|---|---|---|---|
| Chassis / Frame | The main body that holds everything | Not replaceable (weld repair) | Cracks near mast mount |
| Counterweight | Cast iron block at the rear that balances loads | $500–$1,500 | Missing (stolen/sold), cracked bolts |
| Overhead guard | Roof structure protecting operator | $400–$1,000 | Bent after tip-over |
| Operator floor / mat | Floor of the operator compartment | $100–$300 | Worn through |
| Seat (sit-down models) | Operator seat with suspension | $200–$800 | Suspension worn, tears |
| Steering wheel & column | Steering input | $150–$500 | Loose column |
| Hood / engine cover | Covers engine or battery | $200–$600 | Cracked, missing latches |
| Battery cover / compartment | Battery enclosure (electric) | $300–$800 | Corrosion from acid |
| Nameplate / data plate | Spec plate on chassis | $50–$150 (replacement from mfr) | Missing, illegible |
| Counterweight cover | Plastic/metal cover over counterweight | $100–$300 | Cracked |
3. Drive & Steering Parts
| Part Name | What It Does | Typical Replacement Cost | Most Common Failure |
|---|---|---|---|
| Drive axle | Transfers power to drive wheels | $2,000–$5,000 | Gear wear, bearing failure |
| Drive motor (electric) | Propels the truck | $1,500–$4,000 | Brush wear (DC), bearing failure (AC) |
| Transmission (diesel) | Shifts gears | $2,500–$6,000 | Clutch/gear wear |
| Steering axle | Front/rear axle that turns the wheels | $1,500–$3,500 | Kingpin wear, loose steering |
| Steering motor (electric) | Powers the steering | $800–$2,000 | Brushes, controller fault |
| Load wheels | Front wheels that carry the load | $100–$300 each | Flat spots, wear |
| Drive tires | Rear/front drive tires | $150–$500 each | Wear, cuts, chunking |
| Wheel hubs / bearings | Support wheels | $200–$500 each | Bearing noise, play |
| Brakes (service) | Stops the truck | $300–$1,000 | Worn pads/shoes |
| Brake discs / drums | Friction surface | $200–$600 | Scoring, warping |
| Parking brake | Holds truck when parked | $150–$400 | Cable stretch, adjustment |
| Steering tie rods / linkage | Connects steering to wheels | $150–$400 | Loose joints, play |
4. Power & Hydraulic Parts
| Part Name | What It Does | Typical Replacement Cost | Most Common Failure |
|---|---|---|---|
| Battery (electric) | Energy storage | $800–$18,000 | Sulfation, cell failure |
| Battery charger | Charges the battery | $500–$3,000 | Controller board failure |
| Hydraulic pump | Pressurizes hydraulic fluid | $800–$2,500 | Cavitation, seal failure |
| Hydraulic control valve | Directs fluid to cylinders | $500–$1,500 | Sticky spool, leak |
| Hydraulic hoses | Carry pressurized fluid | $50–$300 each | Cracks, burst, chafing |
| Hydraulic fluid / oil | Working fluid | $100–$300 per fill | Contamination, water |
| Hydraulic filter | Cleans the fluid | $20–$80 | Clogged |
| Engine (diesel/LPG) | Power source (IC trucks) | $4,000–$10,000 rebuild | Head gasket, bearings |
| Starter motor | Starts the engine | $200–$600 | Worn brushes |
| Alternator | Charges the engine battery | $200–$500 | Bearing failure |
| Radiator / cooling fan | Cools the engine | $300–$800 | Clogged fins, leak |
| Air filter | Cleans intake air | $20–$60 | Clogged |
| Fuel tank / LPG tank | Fuel storage | $300–$1,000 | Leaks, corrosion |
| Controller (electric) | Manages motor power | $1,000–$3,500 | Overheating, short circuit |
| Contactor | Switches high current | $200–$600 | Pitted contacts |
| Wiring harness | Connects all electrical | $500–$2,000 | Chafing, corrosion |
The 5 Parts That Fail Most Often (Statistics)
Based on service records across thousands of forklifts:
| Part | % of All Repair Calls | Typical Cause |
|---|---|---|
| Tires | 25% | Normal wear, improper inflation, rough floors |
| Battery & charging system | 20% | Watering neglect, overcharging |
| Hydraulic leaks (cylinders, hoses) | 15% | Seal wear, hose chafing |
| Brakes | 10% | Normal wear, operator abuse |
| Controller / electrical | 10% | Condensation, overheating |
That's 80% of repair calls from five parts — all of which are caught by the daily inspection checklist.
Forklift Parts Terminology Cheat Sheet
When you call a supplier, use these names:
| You Say | You Mean |
|---|---|
| 'Fork carriage' | The frame holding the forks |
| 'Lift chains' | The chains that raise the carriage |
| 'Mast rails / channels' | The vertical guides |
| 'Load wheels' | The front wheels |
| 'Steer wheels / steering tires' | The rear wheels (on most counterbalances) |
| 'Tilt cylinder' | Tilts mast forward/back |
| 'Side-shifter' | Moves forks side to side |
| 'Carriage plate / backrest' | The vertical backplate behind forks |
| 'Overhead guard' | The roof cage |
| 'Counterweight' | The cast iron rear block |
| 'Hydraulic control valve' | Directs oil flow |
| 'Drive axle' | The axle with drive wheels |
| 'OPS sensor' | Operator presence system |
| 'Data plate' | The spec/nameplate |
How to Order the Right Part (Every Time)
Step 1 — Find the data plate. Model number + serial number. Without these, no supplier can guarantee fit.
Step 2 — Take a photo of the part from two angles, with a ruler for scale. A photo of a 'hydraulic cylinder' is 100× more useful than a description.
Step 3 — Look for a part number stamped on the part. Most manufacturers stamp their own part number on castings, cylinders, and motors.
Step 4 — State the capacity and lift height of the truck — some parts (mast, carriage, forks) are capacity-specific.
Step 5 — Ask for the OEM part number cross-reference if buying aftermarket. A good supplier can tell you if the aftermarket part matches the OEM spec.
The Parts You Should Keep in Stock
For a small fleet (1–5 forklifts), keep these on the shelf:
| Part | Quantity | Cost |
|---|---|---|
| Hydraulic hoses (common sizes) | 2–4 | $100–$400 |
| Hydraulic fluid | 20 L | $60–$120 |
| Air/oil filters (per model) | 2 each | $60–$150 |
| Fuses and relays | Assorted | $30–$80 |
| Light bulbs / LEDs | 4–8 | $40–$100 |
| Tires (spare set for the busiest truck) | 1 set | $400–$1,200 |
| Chain gauge + wear gauge | 1 each | $50–$100 |
| Grease, oil, basic seals kit | — | $100–$200 |
Budget: $800–$2,500 to stock parts that prevent most downtime. Compare that to one emergency service call ($300–$800) plus downtime ($500–$2,000/day) — the stock pays for itself on the first breakdown.
The Bottom Line
Knowing the names of forklift parts isn't just mechanic knowledge — it's procurement knowledge. The difference between 'the thing that lifts the forks' and 'lift chains, part number 514-34-105' is the difference between a 2-day repair and a 3-week repair.
Learn the 30 parts in this guide. Keep the cheap ones in stock. Check the five high-failure parts (tires, battery, hydraulics, brakes, electrical) on the daily inspection. That's the entire maintenance program, distilled.
