Description
Core Specifications
| Spec | Value |
|---|---|

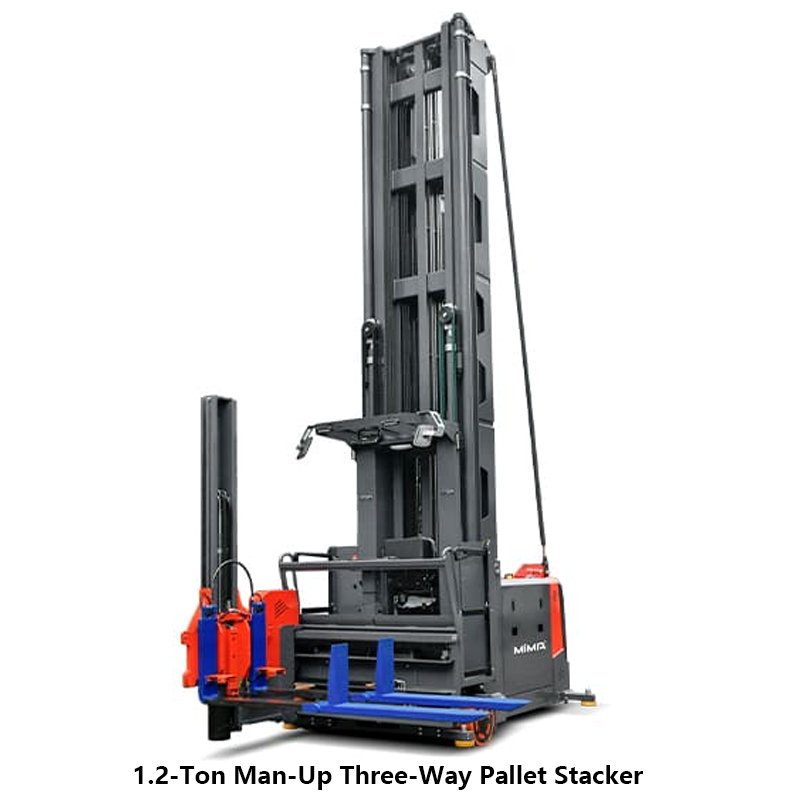

| Model | MiMA MCC12 |
| Load capacity | 1,200 kg |
| Load center | 600 mm |
| Standard main lift height | 4,500–12,500 mm |
| Auxiliary lift height | 1,700 mm |
| Custom max lift (optional) | Up to 17,000 mm |
| Load extension distance | 1,000 mm |
| Min. stacking aisle width | 1,900 mm |
| Fork type | Double deep reach retractable |
| Fork function | 180° rotation + lateral side-shift |
| Tires | Polyurethane (PU) |
| Standard battery | 80V lead-acid |
| Cabin type | Semi-open cab |
| Control panel | Front-mounted auxiliary mast panel |
| Standard equipment | Weighing system |
Operation
Double-deep telescopic forks — Extend 1,000 mm forward to reach the rear pallet position. Retract to handle front pallets. No need for the truck to move in and out of the aisle to access second-row pallets.
180° fork rotation — Forks pivot to serve both sides of the aisle in a single pass.
Lateral side-shift — Integrated one-touch control. Forks slide left/right for precise positioning without moving the truck.
Auxiliary mast — The forks extend forward on their own mast section while the main cab stays in place. The operator sees exactly where the forks are going — important when handling fragile loads at 12 m height.
Magnetic guidance — Optional wire-in-floor or magnetic rail for automated straight-line travel in aisles. Eliminates steering drift.
Cross laser alignment — Precision targeting lasers for fork-to-pallet alignment. Standard on all units.
Real Application: Lighting Industry Warehouse
A mid-to-large lighting manufacturer with diverse product lines faced a common problem: an urban facility with no room for expansion, growing SKUs, and fragile high-value items requiring precision handling at height. Their existing selective racking with counterbalance trucks wasted floor space and couldn’t use vertical space above 8 m.
The solution: MiMA MCC12 double-deep turret truck in 1.75 m aisles, with magnetic guidance and cross laser alignment.
Results:
| Metric | Before | After |
|---|---|---|
| Storage density | Baseline | +200% |
| Aisle width | ~3.5 m | 1.75 m |
| Vertical utilization | Up to 8 m | Up to 18.5 m |
| Equipment per shift | 2 trucks (stacking + picking) | 1 truck (both) |
The same footprint now holds 3× the pallet positions. The MCC12 handles both bulk put-away and piece picking — no second machine needed.
Get a Quote
To spec the right configuration:
- Building clear height
- Aisle width available
- Double-deep or single-deep racking
- Maximum pallet weight
- Battery preference (lead-acid or lithium)
- Guidance preference (magnetic / wire / none)
We reply within 24 hours with a confirmed price and delivery date.
