Description
Our advantage

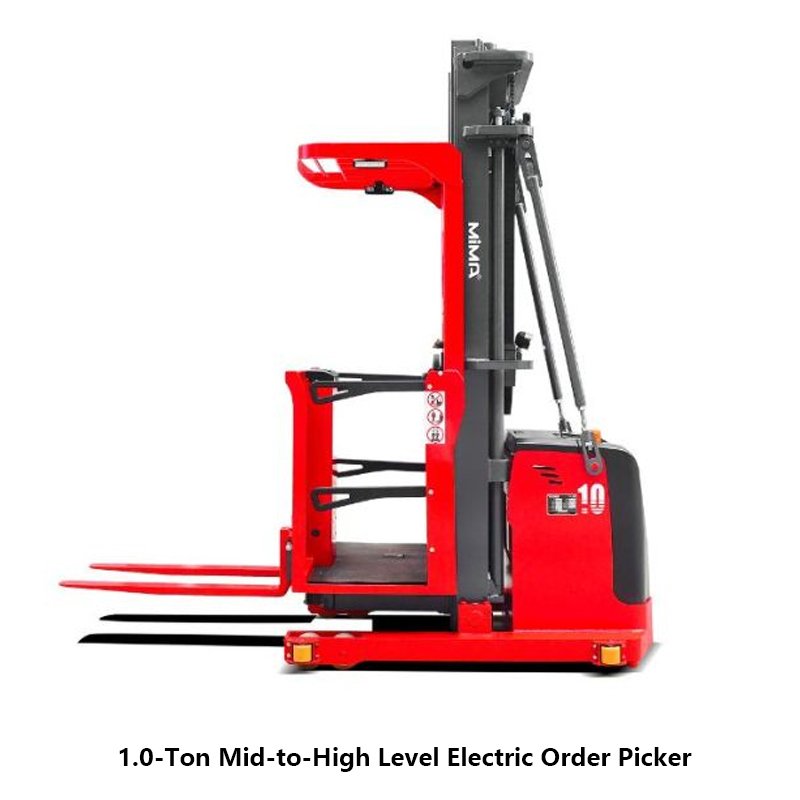

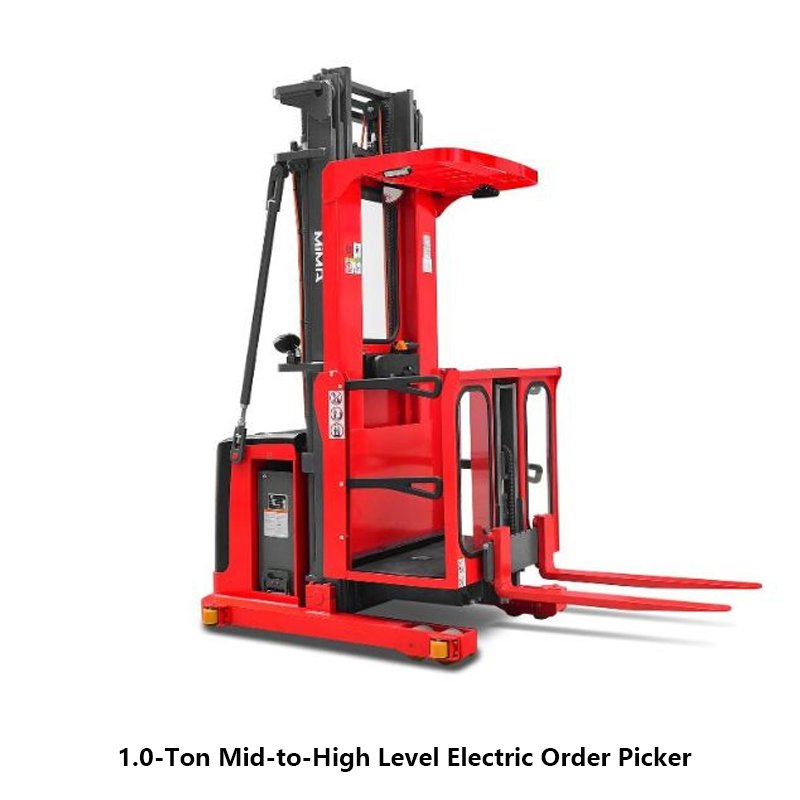

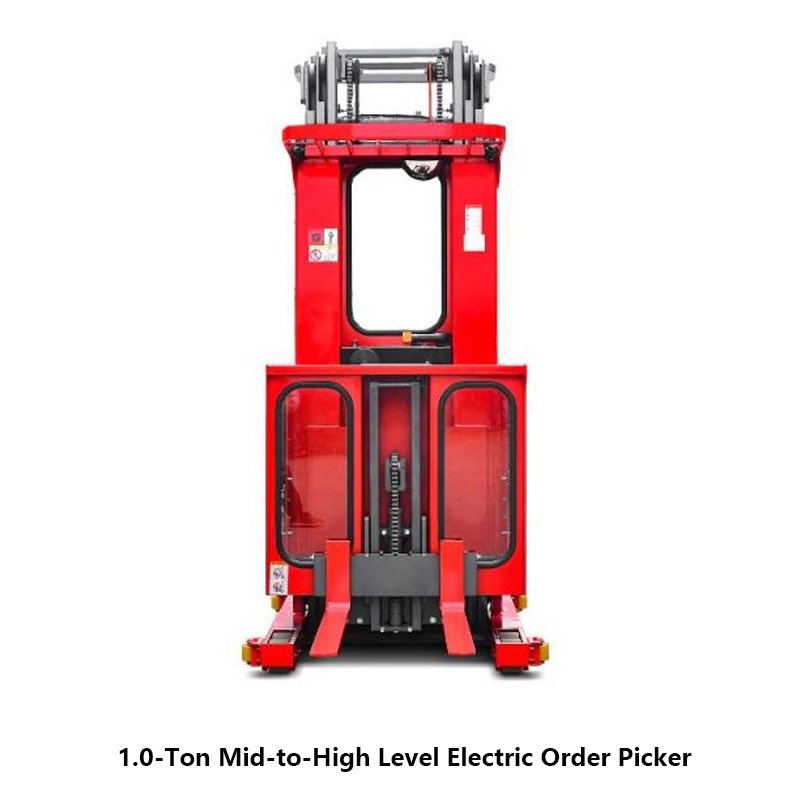

1. Precision 1000kg Rated Payload ($Q$)
Tailored for Piece-Picking: Optimized to handle up to 1000 kg ($Q$) easily, making it ideal for split-case sorting, component picking, spare parts logistics, and online retail box fulfillment.
600mm Load Center ($C$): Engineered geometry preserves robust residual capacity and strict platform rigidity even at its full 6-meter vertical extension.
2. Optional Auxiliary Lift for Ultimate Ergonomics
Zero-Squat Operation: Available with an auxiliary lift system ($h_9 = 700\text{ mm}$) for the forks. This allows operators to adjust the cargo tray height independently, reducing lower-back fatigue and keeping picking cycles fast and continuous.
Dual Cabin Configurations: Choose the Open Cabin for rapid bulkier load handling, or the Closed Cabin with Auxiliary Lift for maximum operator comfort and repetitive fine-item picking.
3. Smooth, Proportional Mast Control
Jerk-Free Vertical Travel: Powered by an advanced AC hydraulic system with proportional lifting and lowering controls. Start and stop transitions remain perfectly cushioned, protecting fragile goods and boosting operator confidence at height.
Simultaneous Travel & Lift: Advanced electronics permit driving and lifting concurrently, slashing cycle times between distant warehouse slotting locations.
4. Uncompromised Safety & VNA Maneuverability
Monitored Side Gates: Smart electronic interlock gates automatically disable traction and mast operations if left open, ensuring bulletproof fall protection.
Compact 1150mm Footprint: Boasts an overall chassis width as narrow as 1150 mm, allowing smooth execution inside space-restricted warehouse racking corridors.
Smart Intralogistics Guidance: Supports clear wheel-direction displays and standard driving alarms, allowing seamless integration with magnetic or wire guidance systems in high-bay lanes.
Technical Specifications Matrix (MHA10 vs MHA13)
| Technical Parameter | MHA10 Specification | MHA13 Specification |
| Brand / Manufacturer | MiMA | MiMA |
| Operation Type | Man-Up Standing Picking | Man-Up Standing Picking |
| Rated Load Capacity ($Q$) | 1000 kg (2,200 lbs) | 1360 kg (3,000 lbs) |
| Load Center Distance ($C$) | 600 mm | 600 mm |
| Maximum Lift Height ($h_3$) | 6,000 mm | 9,500 mm |
| Max. Platform Height ($h_{12}$) | 6,000 mm | 9,660 mm |
| Maximum Picking Height | 7,600 mm | 11,100 mm |
| Auxiliary Lifting Height ($h_9$) | 700 mm (Optional) | 700 mm (Optional) |
| Overall Width ($b_1$) | 1150 mm | 1150 mm / 1520 mm |
| Standard Fork Dimensions ($l/e/s$) | $1220 \times 100 \times 50\text{ mm}$ | $1220 \times 100 \times 50\text{ mm}$ |
| Power System | 24V / 48V AC System | 48V Full AC System |
| Battery Options | High-Capacity Lithium-Ion / Industrial Lead-Acid |
