Description
Technical Specifications
Engineered for precision and stability in narrow aisles.
| Performance Metric | Specification |
| Max. Platform Height | 3000mm / 3500mm / 4500mm |
| Max. Working Height | 5.0m – 6.5m |
| Lift Capacity (Total) | 300 kg (660 lbs) |
| Cargo Tray Capacity | 90 kg (Front Loading Tray) |
| Drive Speed (Lowered) | 4.0 km/h |
| Drive Speed (Raised) | 1.1 km/h (Safety Speed Limit) |
| Turning Radius | 1380 mm (Zero-Turn Capable) |
| Battery Type | 24V / 105Ah Maintenance-Free AGM |

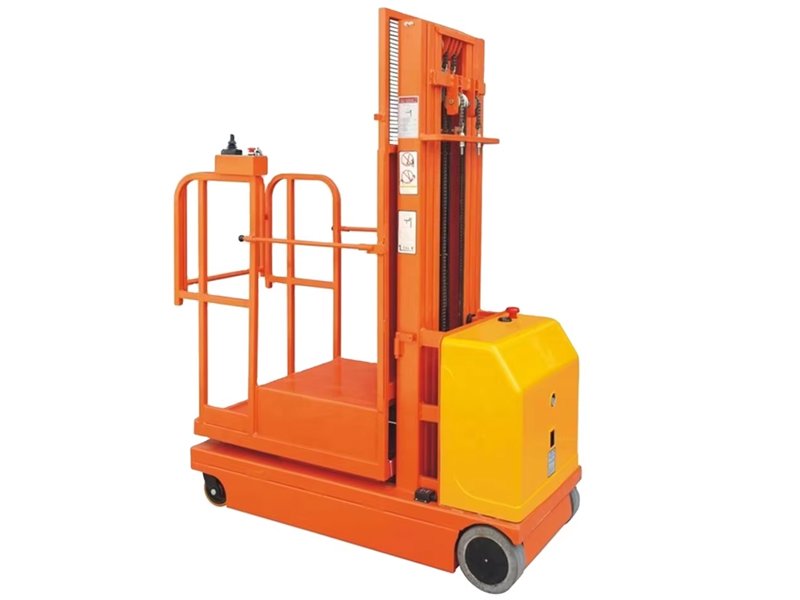

Key Features: Why Upgrade to a Mini Order Picker?
■ Ultimate Maneuverability in Narrow Aisles
With a width of only 750mm-800mm, our mini picker fits through standard doorways and navigates “dead-end” aisles where traditional forklifts cannot enter. The zero-turn radius allows it to rotate on the spot.
■ Intelligent Safety Systems
-
Automatic Pothole Protection: Mechanical “flippers” deploy when the platform is raised to prevent tipping on uneven floors.
-
Proportional Control: The joystick provides smooth, stepless acceleration and deceleration—no jerky movements at high altitudes.
-
Dual Emergency Lowering: Can be lowered from the platform or via the emergency valve on the base in case of power loss.
■ Ergonomic Productivity
The adjustable front cargo tray allows operators to place picked items at a comfortable height, reducing repetitive bending and straining. The spacious cabin provides ample legroom for all-shift comfort.
■ Non-Marking & Quiet Operation
Equipped with high-elasticity non-marking rubber tires, this picker leaves no scuffs on epoxy or polished floors, making it ideal for supermarkets, hospitals, and cleanroom environments.
Primary Applications
-
E-commerce Fulfillment: Rapid picking of apparel, electronics, and small parcels.
-
Retail Operations: Safe shelf restocking during business hours without blocking customer flow.
-
Maintenance & Facilities: Ideal for changing overhead LED lights or inspecting HVAC systems in tight spaces.
-
Libraries & Archives: Quiet, stable operation for managing high-reach book stacks.
Maintenance-Free Performance
We understand that B2B buyers hate downtime. Our Mini Order Picker features:
-
On-Board Smart Charger: Plugs into any standard 110V/220V wall outlet.
-
Maintenance-Free Batteries: No water filling or acid handling required.
-
Simplified Hydraulics: Minimized leak points and easy-access components for annual inspections.
FAQ (Search Engine Optimized)
Q: Can the machine be driven while the platform is fully extended?
A: Yes. For maximum efficiency, our picker is “full-height driveable.” However, the system automatically reduces drive speed for safety when the platform is raised.
Q: Is a forklift license required to operate this?
A: In most jurisdictions, this is classified as an MEWP (Mobile Elevating Work Platform). While it is much easier to operate than a forklift, we always recommend basic operator safety training.
Q: How long does the battery last on a full charge?
A: Under typical picking cycles, the 105Ah battery provides a full 6-8 hour work shift.
