Description
Our advantage
1. Massive 1360kg Industrial Load Capacity
Heavy-Duty Sorting: Engineered with an enhanced chassis platform that safely handles a total load rating of 1360 kg ($Q$), allowing operators to pick heavier components, industrial parts, or larger multi-SKU batches per cycle.
600mm Load Center ($C$): Optimized engineering geometry ensures maximum residual capacity and rigid stability even when lifting pallets or parts trays to high elevations.
2. Extreme Vertical Reach for High-Bay Facilities

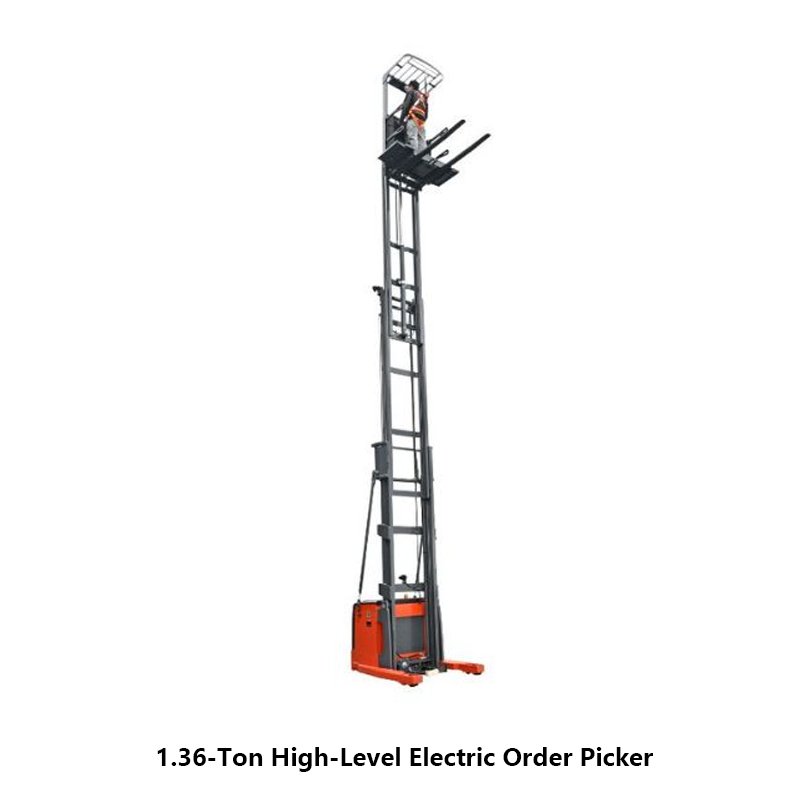

Up to 11.2m Picking Window: Choose between highly rigid mast options ranging from 7,000 mm to 9,500 mm lift heights ($h_3$), transforming upper-tier air space into highly active profit zones.
Simultaneous Travel & Lift: Smooth cabin-linked controls permit operators to accelerate, steer, and lift concurrently while driving down the aisle, drastically slicing order fulfillment times.
3. Ultimate Safety Integration Matrix
Electronic Sensor Interlock Gates: Active safety side-gates automatically lock down traction and mast lifting operations if open, providing continuous fall protection for personnel at double-digit heights.
Adaptive Speed Control: Intelligent onboard controllers automatically decelerate driving and steering speeds in direct proportion to the platform height, securing a perfectly centered gravity alignment.
4. VNA Maneuverability & Fleet Flexibilities
Narrow Footprint: Features an overall chassis width as slim as 1070 mm ($b_1$/$b_2$), designed to slice down the narrowest racking lanes without sacrificing stability.
Premium Polyurethane Wheels: Configured with a heavy-duty $4 / 1X$ wheel layout ($343 \times 120\text{ mm}$ front / $152 \times 105\text{ mm}$ rear) for low rolling resistance and absolute floor protection.
Technical Data Table
| Technical Parameter | Specification Value (MH13 Series Matrix) |
| Brand / Manufacturer | MiMA |
| Model Code / Variants | MH13-L / MH13-V / MH13-T / MH13-H |
| Power Type | Electric Battery (Lithium-Ion / Heavy Industrial Lead-Acid) |
| Operation Type | Man-Up High-Level Order Picking |
| Rated Load Capacity ($Q$) | 1360 kg (3,000 lbs) |
| Load Center Distance ($C$) | 600 mm |
| Front Overhang ($x$) | 277 mm |
| Wheelbase ($y$) | 1435 mm / 1555 mm |
| Tyre Type | Heavy-Duty Polyurethane Wheels |
| Tyre Size, Front | $\phi 343 \times 120\text{ mm}$ |
| Tyre Size, Rear | $\phi 152 \times 105\text{ mm}$ |
| Wheels Number (Front/Rear) | 4 / 1X (Driven) |
| Track Width, Front ($b_{10}$) | 1068 mm / 1368 mm |
| Mast Retracted Height ($h_1$) | 3251 mm / 4084 mm / 4523 mm |
| Max. Mast Lift Height ($h_3$) | 7,000 mm / 9,500 mm |
| Max. Platform Height Raised ($h_{12}$) | 7160 mm / 9660 mm |
| Maximum Picking Height | 8,760 mm / 11,260 mm |
| Overall Length ($l_1$) | 3178 mm / 3298 mm |
| Overall Width ($b_1 / b_2$) | 1070 mm / 1520 mm |
| Standard Fork Dimensions ($l/e/s$) | $1220 \times 100 \times 50\text{ mm}$ |
| Fork Outside Spread ($b_5$) | 635 mm |
| Ground Clearance ($h_{13}$) | 70 mm (Minimum under fork surface) |
