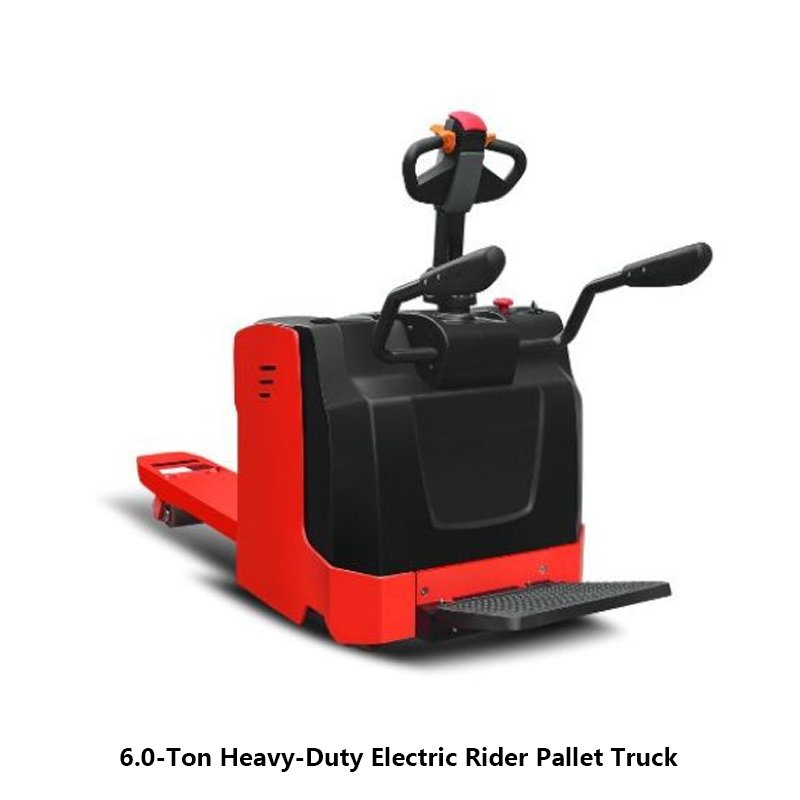

Description
🛠️ Key Product Selling Points
1. Extreme 6.0-Ton (6000kg) Structural Load Capacity
Indestructible Steel Construction: Features heavy-duty, reinforced forks (1200mm length and 87mm thickness) designed to withstand immense compression and bending stress when lifting heavy steel coils, industrial machinery molds, or oversized raw pallets.
Rigid 3-Point Chassis Stability: The massive 1,480 kg service weight acts as a low-slung counterweight, keeping all drive wheels firmly pressed to the ground for consistent traction during extreme load pulling.
2. Flexible Foldable Pedal for Ergonomic Stand-On Transit
Long-Distance Comfort: The cushioned, foldable platform allows operators to stand comfortably during long-distance transits, protecting them from floor vibrations and lowering leg fatigue over long shifts.
Space-Saving Walkie Mode: Simply fold the pedal and side protection arms to compress the overall length to 1945 mm, giving you a highly maneuverable pedestrian walkie that turns tightly inside staging bays.
3. High-Torque Electric Drive with Safe Speed Management
Controlled Power Delivery: Engineered to deliver high starting torque at safe, controlled speeds (4.0 km/h laden / 4.5 km/h unladen), ensuring that 6-ton loads are transported with maximum safety and predictable stopping distances.
Smooth Hydraulic Lift Lift (h13 + h3): Lifts up to 205 mm off the ground to provide plenty of physical ramp clearance when moving heavy pallets up warehouse dock levellers.
4. Industrial Battery & Low Maintenance Architecture
Continuous Heavy Staging: Equipped with an industrial-grade battery compartment to deliver reliable, emission-free current to the high-output traction motor.
Easy Ground Access: Key electronic and hydraulic system components are positioned for fast access, simplifying routine maintenance checks.
📊 Industrial Standard Technical Data Table
| Technical Parameter | Specification Value (MiMA ME60) |
| Brand / Manufacturer | MiMA |
| Model Code | ME60 |
| Power Train | Heavy-Duty Industrial Battery |
| Operation Type | Stand-on Type (Foldable Pedal) |
| Rated Load Capacity | 6000 kg (13,200 lbs) |
| Load Center Distance | 600 mm |
| Service Weight (incl. battery) | 1480 kg |
| Lifting Height | 205 mm |
| Minimum Fork Height | 95 mm |
| Overall Length (Pedal Folded / Unfolded) | 1945 mm / 2390 mm |
| Overall Chassis Width | 850 mm |
| Fork Dimensions | 1200 * 255 * 87mm |
| Fork Outside Spread | 715 mm |
| Turning Radius (Pedal Folded / Unfolded) | 1900 mm / 2320 mm |
| Travel Speed (Laden / Unladen) | 4.0 / 4.5 km/h |
📈 Ideal Industry Application Scenarios
Heavy Machinery & Mold Workshops: Seamlessly moving massive metal molds, heavy engine blocks, and raw casting parts between manufacturing assembly lines.
Steel & Metal Processing Plants: Safely transporting heavy metal coils, structural pipes, and high-density industrial wire pallets across production floors.
Heavy Construction & Cable Logistics: Moving heavy industrial reels, raw chemical drums, and dense building material pallets over medium and long distances.
