🛠️ Key Product Selling Points
1. Massive 4.0-Ton Towing Performance
Heavy-Duty Multi-Trailer Pulling: Safely tugs up to 4,000 kg of rolling carts, heavy parts bins, or specialized raw material trailers in a single trip, drastically cutting down on logistics cycle times and active fleet traffic.
Brushless AC Drive Matrix: Equipped with a high-torque, maintenance-free AC drive motor that delivers powerful gradeability and smooth, linear acceleration under full load.
2. Ergonomic Rider Seat for Peak Operator Comfort
Vibration-Dampening Seat: Features an integrated, heavily-cushioned rider seat designed to absorb chassis vibrations during long journeys, ensuring operators remain highly alert and comfortable throughout full 8-hour shifts.
Accessible Command Platform: Low-step height allows smooth boarding while placing all multi-functional driving controls, turtle-speed switches, and digital instrumentation layouts immediately within the driver’s natural line of sight.

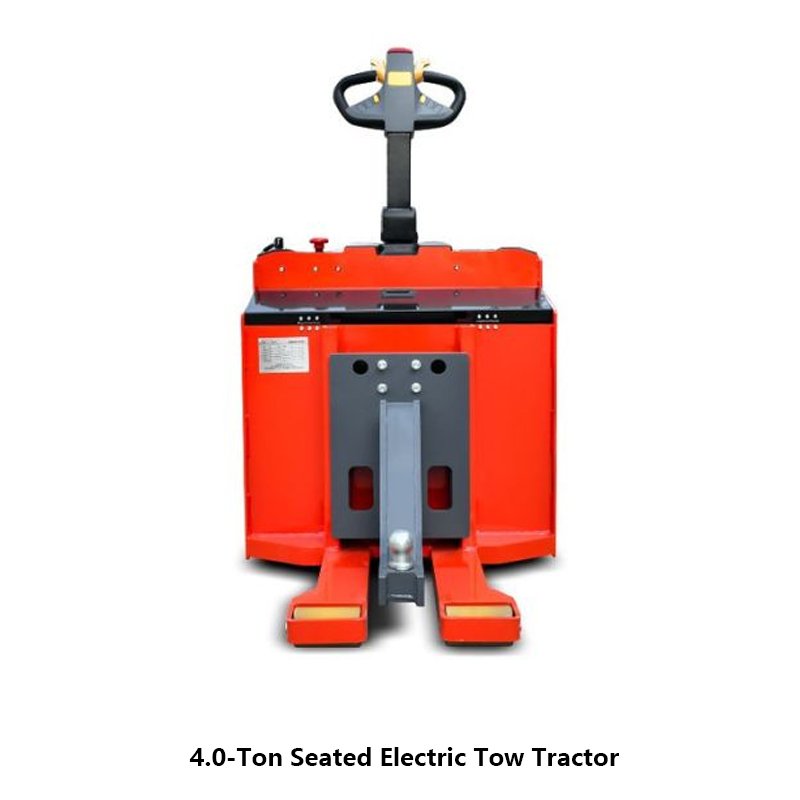

3. Precision Rear Inching Control Buttons
Solo Coupling Alignment: Eliminates the need for a second worker or for the driver to jump in and out of the seat to align the hitch. Standard rear-mounted micro-inching buttons allow operators to precisely nudge the tractor millimetrically into position next to the trailer drawbar for swift, safe hookups.
4. Multi-Stage Adjustable Traction Heights
Universal Trailer Compatibility: Designed with a versatile, heavy-duty rear hitch system that can be adjusted to match varying trailer drawbar heights, allowing your existing fleet of transport carts to connect seamlessly without custom modifications.
📊 Industrial Standard Technical Data Table
| Technical Parameter | Specification Value (MiMA MGC40 Series) |
| Brand / Manufacturer | MiMA |
| Model Code | MGC40 |
| Power Type | Electric Battery (High-Capacity Lead-Acid / Lithium-Ion Optional) |
| Operation Type | Rider / Seated (Tiller Arm Steering) |
| Rated Towing Capacity ($Q$) | 4000 kg (8,800 lbs) |
| Controller System | USA CURTIS Electric Controller |
| Drive Motor Type | Maintenance-Free Brushless AC Motor |
| Tyre Type | Premium Heavy-Duty Polyurethane (PU) |
| Wheels Layout (Front/Rear) | 1x (Drive) / 2x (Load caster configurations) |
| Overall Length ($l_1$) | Approx. 1380 mm (To the face of the coupler frame) |
| Overall Width ($b_1$) | 850 mm (Compact and sleek for tight factory aisles) |
| Turning Radius ($Wa$) | Highly compact for indoor maneuvers |
| Standard Battery Spec | 24V High-Capacity Industrial Cell |
| Braking System | Electromagnetic Automatic Braking & Regenerative Braking |
📈 Ideal Heavy Industry Applications
Automotive Sub-Assembly Plants: Transporting heavy stampings, engine blocks, and wire-harness racks directly to primary assembly bays.
Textile & Fabric Manufacturing: Towing multiple heavily-loaded rolling carts with massive yarn beams and finished fabric rolls between storage and shipping bays.
Airport Baggage & Cargo Terminals: Pulling luggage trailers and specialized ground support equipment smoothly across terminal floors.
