Description
🛠️ Key Product Selling Points (USPs)
1. Automotive-Style Cabin & EPS Steering
Car-Like Ergonomics: Equipped with a standard adjustable steering column and a premium high-back seated driver’s compartment ($895\text{ mm}$ seat height) for continuous comfort over full 8-16 hour double-shifts.
Electronic Power Steering (EPS): Active EPS technology ensures light, feather-touch, and precise steering control at low speeds, preventing operator arm fatigue during tight warehouse maneuvers.
2. Heavy-Duty 4.0T to 6.0T Pulling Power
Massive Trailer Train Capacities: Easily pulls large multi-trailer setups carrying up to 6,000 kg ($Q$), making it perfect for airport baggage transport, postal parcel cart logistics, and heavy industrial plant runs.
Three-Pivot Chassis Architecture: Engineered with a robust three-point contact layout that guarantees exceptional stability when executing tight turns under heavy trailing loads.
3. Smart Rear-Mounted Inching Buttons (Micro-Positioning)

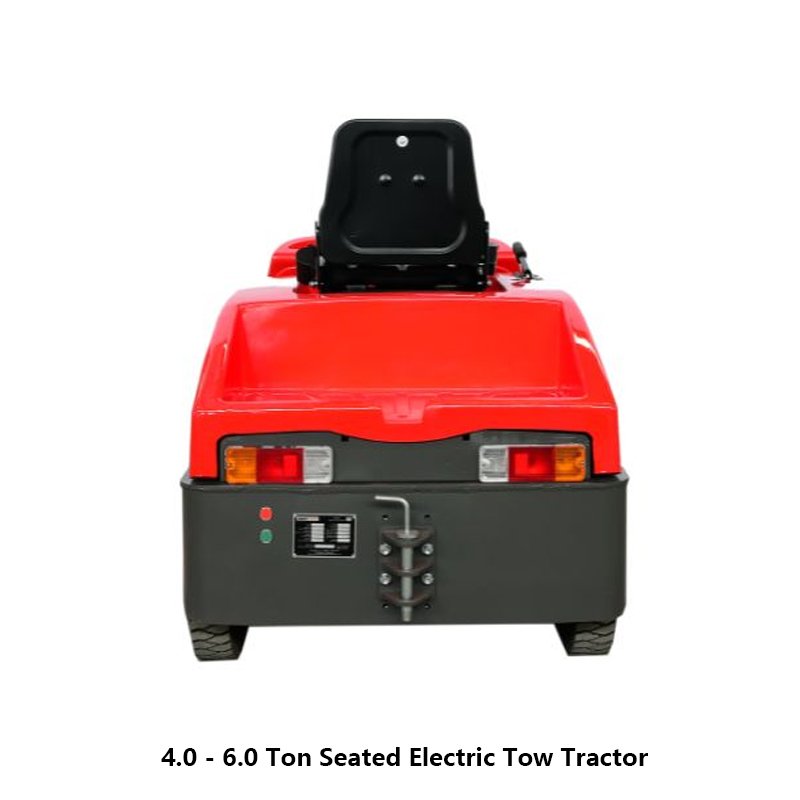

One-Person Tow Hitching: Eliminates the hassle of getting in and out of the cabin to line up trailer hitches. Integrated rear tail-inch switches allow a single operator to standingly nudge the tractor forward/backward with millimeter precision for fast, safe coupling.
4. Rough Floor Adaptability & High Ground Clearance
Large-Diameter Rubber Tires: Equipped with durable solid or inflatable rubber tires that deliver superb grip, shock-absorption, and slip prevention across mixed indoor-outdoor floor surfaces.
140mm High Ground Clearance: Provides ample clearance (140 mm) to effortlessly conquer outdoor ramps, expansion joints, and uneven threshold plates.
📊 Industrial Standard Technical Data Table
| Technical Parameter | MGA40 Specification | MGA60 Specification |
| Brand / Manufacturer | MiMA | MiMA |
| Operation Type | Seated (Sitting-type with Steering Wheel) | Seated (Sitting-type with Steering Wheel) |
| Rated Towing Capacity ($Q$) | 4000 kg (8,800 lbs) | 6000 kg (13,200 lbs) |
| Service Weight (with Battery) | 920 kg | 1000 kg |
| Towing Coupling Heights | 210 / 275 / 340 / 405 mm | 210 / 275 / 340 / 405 mm |
| Height of Seat ($h_{14}$) | 895 mm | 895 mm |
| Overall Length ($l_1$) | 1790 mm | 1790 mm |
| Overall Width ($b_1$) | 990 mm | 990 mm |
| Turning Radius ($Wa$) | 1650 mm | 1650 mm |
| Ground Clearance | 140 mm | 140 mm |
| Travel Speed (Laden / Unladen) | 8 / 14 km/h | 7 / 17 km/h |
| Rated Drawbar Pull ($F$) | 3800 N | 4500 N |
| Battery Specs (Voltage/Capacity) | 24V / 490Ah | 48V / 280Ah |
| Drive & Control Matrix | Maintenance-Free AC Drive + CURTIS Controller | Maintenance-Free AC Drive + CURTIS Controller |
📈 High-Intensity Industry Applications
Airport Baggage Handling: Safely towing long baggage dolly trains across runways and indoor luggage sorting bays with constant start-and-stop stability.
Heavy Machinery & Assembly Lines: Moving massive heavy parts bins, steel fabrications, and engine dollies from machining halls to final testing cells.
Mega-Warehouse Logistics: Rapidly shuffling multi-pallet trains between distinct deep-storage zones and high-speed cross-dock zones.
