Description
🛠️ Key Product Selling Points

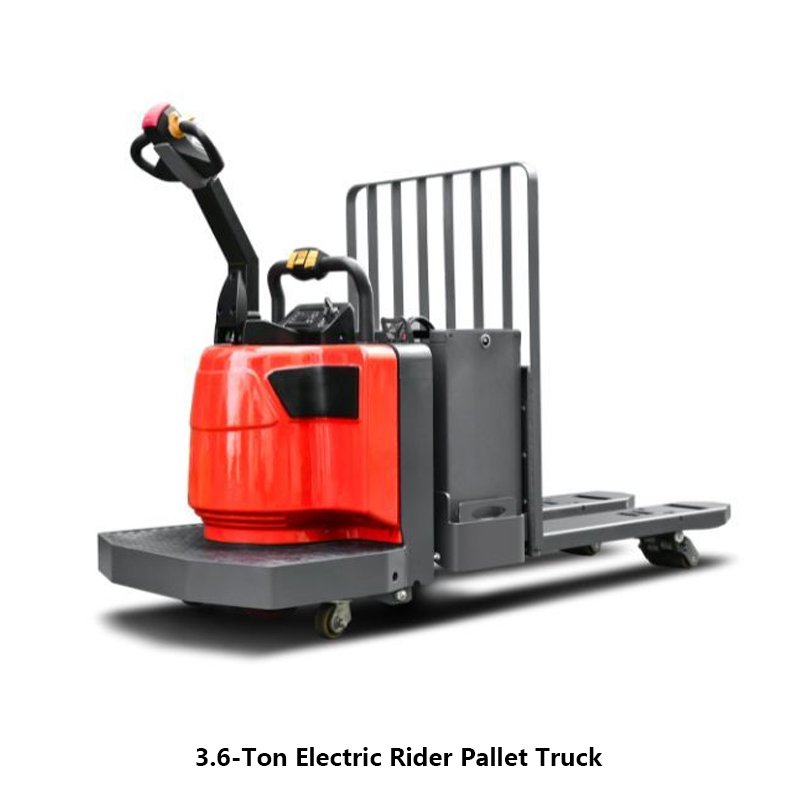

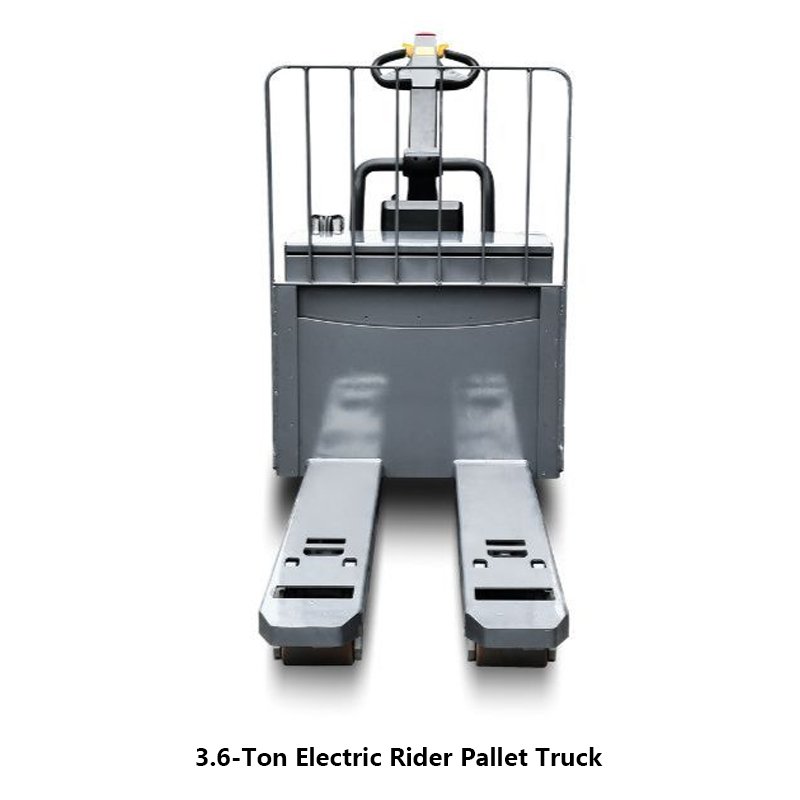

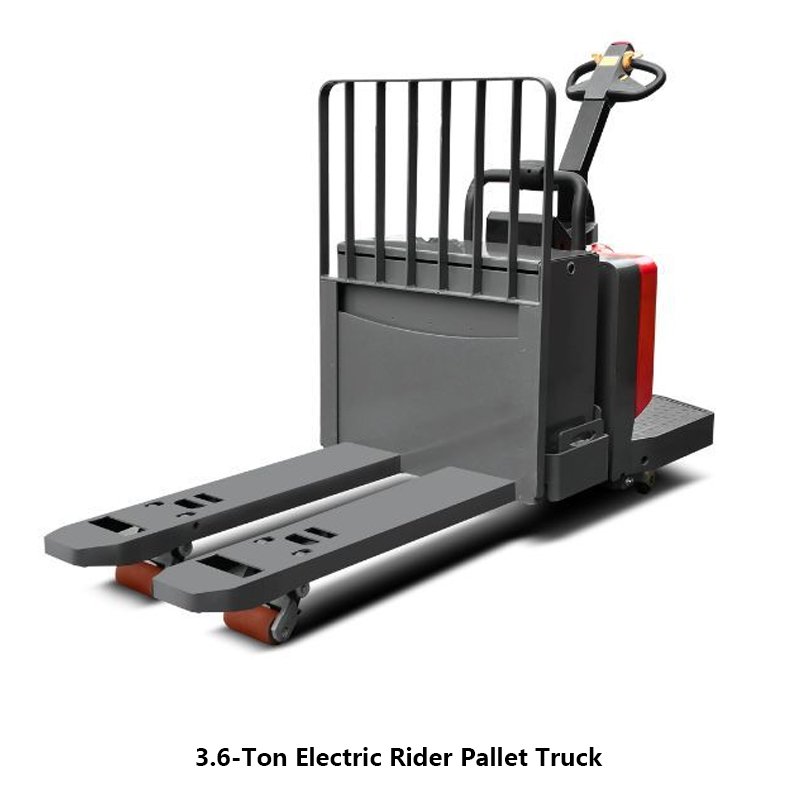

1. Massive 8,000 lbs (3.6-Ton) Capacity with Double-Pallet Geometry
Double Your Fleet Throughput: The double-pallet variant features extended 95.9″ (2435 mm) forks and a 48-inch (1220 mm) load center, enabling a single operator to move two standard loads at once.
US-Pallet Compatibility: Specially designed entry and exit profiles allow the forks to slide into and extract from American double-sided wood and plastic pallets smoothly, minimizing pallet damage.
2. High-Speed Horizontal Logistics with Foldable Platform
Rapid Dock Travel: With a powerful battery drive system, the ME36 clocks a top travel speed of 12 km/h (7.4 mph) unladen and 10 km/h (6.2 mph) fully laden, slashing transit times across large manufacturing workshops.
Flexible Walkie/Rider Modes: The shock-absorbing standing pedal and side protective arms can be folded quickly. Unfold them for high-speed riding across long distances, or fold them to turn the vehicle into an agile pedestrian walkie for tight racking lanes.
3. Industrial-Grade Stability & Smooth Braking
Robust 3-Point Chassis Layout: Designed to keep all drive and load wheels firmly grounded, ensuring maximum stability even when cornering with heavy 3.6-ton loads.
Reliable 5.5″ (140 mm) Lift Clearance: The standard hydraulic lift clearance provides plenty of ground clearance to prevent pallet scraping on transition ramps or uneven dock-leveler surfaces.
📊 Industrial Standard Technical Data Table
| Technical Parameter | Specification Value (ME36 Single Pallet) | Specification Value (ME36 Double Pallets) |
| Brand / Manufacturer | MiMA | MiMA |
| Model Code | ME36 (Single) | ME36 (Double) |
| Power Configuration | Industrial Battery | Industrial Battery |
| Operator Platform Type | Foldable Pedal (Rider / Walkie) | Foldable Pedal (Rider / Walkie) |
| Rated Load Capacity | 3630 kg (8,000 lbs) | 3630 kg (8,000 lbs) |
| Load Center Distance | 610 mm (24 in) | 1220 mm (48 in) |
| Lifting Height | 140 mm (5.5 in) | 140 mm (5.5 in) |
| Fork Dimensions | 1215 * 232 * 62 mm (47.8″) | 2435 * 232 * 62 mm (95.9″) |
| Overall Width | 935 mm (36.8 in) | 935 mm (36.8 in) |
| Turning Radius (Pedal Folded / Unfolded) | 2130 mm (83.9 in) / 2505 mm (98.6 in) | 2130 mm (83.9 in) / 2505 mm (98.6 in) |
| Travel Speed (Laden / Unladen) | 10 km/h / 12 km/h | 10 km/h / 12 km/h |
| Fork Outside Spread | 686 mm (27 in) | 686 mm (27 in) |
📈 Ideal Industry Application Scenarios
High-Volume Cross-Dock Staging: Rapidly transferring heavy goods from inbound trailers to outbound bays across vast distribution hubs.
Manufacturing Assembly Workshops: Moving heavy components, metal stamping raw materials, and finished goods pallets continuously over medium and long distances.
Beverage & Grocery Warehousing: Perfect for staging double rows of heavy beverage cases and high-turnover grocery pallets quickly to restock high-traffic floor lanes.
