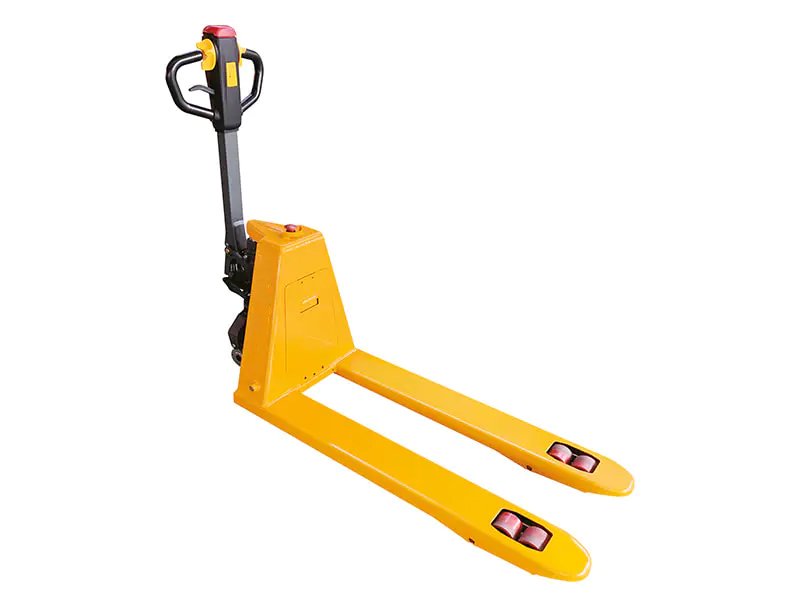

CBD15 Electric Pallet Truck: The Ultimate Efficiency for 1.5-Ton Material Handling
The CBD15 is a 1,500 kg (3,300 lb) electric walkie pallet truck built to bridge the gap between manual hand jacks and a full forklift. It takes the effort out of moving palletized loads while keeping the compact footprint of a manual jack, which makes it suited to tight retail aisles, delivery truck loading, container work, and mezzanine floors where space matters.
Overall width 550 / 685 mm × length 1,150 / 1,220 mm
Turning Radius
1,330 mm
Service Weight
120 kg including battery
Gradeability
5% loaded / 16% unloaded
Max. Lift Height
115 mm
Lowered Fork Height
85mm
Wheel Material
PU (polyurethane) standard; nylon optional
Charger
24V / 5A onboard smart charger, AC 100–240V 50/60Hz
Packed Dimensions and Weight
1,560 × 780 × 1,350 mm / approx. 145 kg (export packing)
Battery Warranty
2 years or 2,000 charge cycles
Key Features
Lithium-Ion Power With Opportunity Charging
The plug-in lithium battery supports opportunity charging, so you can top up during breaks instead of waiting for a full cycle. As a rough guide, a 30-minute break adds roughly 45–60 minutes of runtime. There is no battery watering and no acid, which removes the most common battery maintenance tasks. The rest of the truck, such as wheels, seals, and the controller, still needs normal inspection and servicing.
Compact Design and Maneuverability
The chassis length is similar to a manual pallet jack, and the truck turns within 1,330 mm. That makes it a good fit for container loading and unloading, mezzanine floors, and aisles where a larger truck won’t fit.
Safety and Ergonomic Control
Emergency reverse (“belly”) button: stops and reverses the truck if it contacts the operator
Creep (turtle) speed mode: allows precise movement with the handle in the vertical position in very tight spaces
Electromagnetic braking: holds the truck stationary on ramps and inclines within its rated gradeability. Use ramps only within the rated gradient and follow the operating instructions; the brake is a safeguard, not a substitute for correct ramp procedure.
Built for Durability
The integrated rocker arm is cast as a single piece of reinforced steel to resist bending under load. The brushless drive motor has no carbon brushes to wear, which helps reduce motor maintenance and total cost of ownership.
Applications
Logistics and express: loading and unloading delivery vehicles
Manufacturing: moving raw materials between production lines
Retail and supermarkets: moving heavy pallets on the shop floor without disturbing customers
Food and beverage: compact enough for walk-in coolers and narrow storage racks
Customization and Support
Fork options: different fork widths and lengths for EU and US pallet standards
Wear parts: we supply wear parts such as wheels, seals, and controllers
Certification: CE marking. Our manufacturing operates under ISO 9001 quality management.
FAQ
Can the CBD15 be used on delivery truck liftgates? Its low service weight (about 120 kg) helps, but liftgate capacity must cover the truck, the load, and the operator combined. Always check your liftgate’s rated capacity against the total weight before loading.
How long does a full charge take? A full charge takes about 2 to 2.5 hours, and typical intermittent duty at rated load gives roughly 3 to 4 hours of operation.
Is the battery easy to replace? The battery is a plug-in design that can be swapped in seconds. With a spare battery and a charger, that lets you run extended shifts without waiting for a charge.
Does it work on ramps? Within its rated gradeability: 5% loaded and 16% unloaded. Ramps beyond those figures are outside the rated use.
Request a Quote
Tell us your quantity, pallet size, and typical daily use, and we’ll confirm the right fork dimensions and battery configuration and send a quote with lead time.
