Description
Technical Specifications
Engineered for stability and long-service life.
| Feature | Specification Details |
| Load Capacity | 500kg / 1000kg / 2000kg / 5000kg |
| Platform Size | Customizable (Standard: 1300x800mm to 2500x1500mm) |
| Max. Lifting Height | 1000mm – 4500mm (Single/Double/Triple Scissors) |
| Power Supply | AC 220V/380V/415V (Phase 1 or 3) |
| Lifting Motor | High-Torque Hydraulic Power Pack (1.5kw – 5.5kw) |
| Safety Velocity Fuse | Prevents platform drop in case of hose failure |
| Control Method | Hand-held Pendant / Foot Switch / Remote Control |
Why Our Scissor Lifts Are the Industry Choice?
■ Heavy-Duty Scissor Structure
We use high-tensile manganese steel for the scissor arms. This material offers superior rigidity and minimal deflection even at maximum extension. The pivot points are equipped with self-lubricating bushings, ensuring smooth, quiet operation with near-zero maintenance.
■ Advanced Safety Features (Standard)
Aluminum Safety Trip Bar: Located under the platform edge. If it encounters an obstruction while lowering, the table stops instantly to prevent foot or hand injuries.
Maintenance Safety Props: Mechanical bars to support the platform during inspection.
Overload Protection: A built-in pressure relief valve prevents the table from lifting loads beyond its rated capacity.
■ Precision Hydraulic System
Our high-pressure cylinders feature a chrome-plated piston rod for maximum corrosion resistance. The integrated power pack is designed for high-frequency use, offering consistent lifting speeds and precise height positioning—ideal for feeding materials into CNC machines or conveyors.
■ Customizable Configurations
As a manufacturer, we can tailor the lift table to your specific environment:
Rotating Tops: For palletizing and assembly tasks.
Roller Conveyor Tops: For seamless integration into production lines.
Bellows/Skirts: To protect internal components from dust and debris.
Stainless Steel Finish: For food processing or pharmaceutical cleanrooms.
Professional Applications

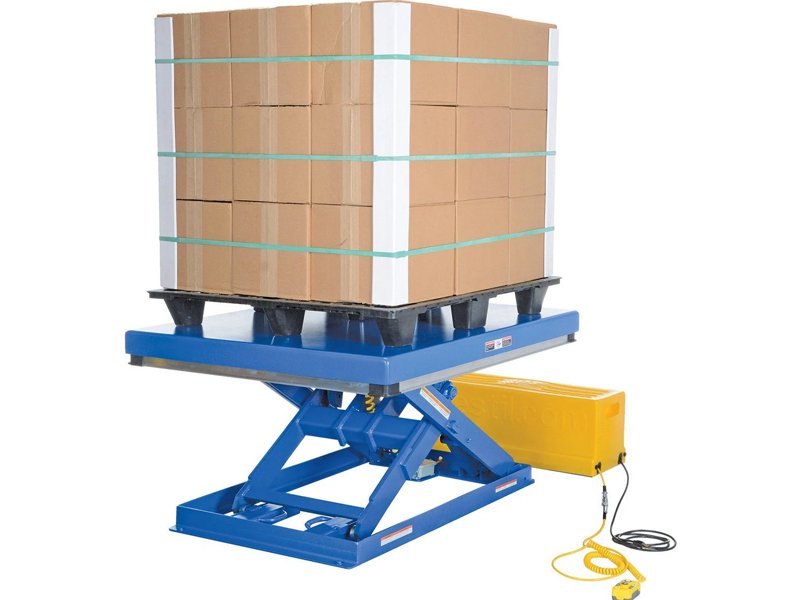

Palletizing & De-palletizing: Keeping the top of the load at a constant waist height.
Machine Feeding: Precisely positioning heavy sheets or components for processing.
Loading Docks: Acting as a bridge between the warehouse floor and delivery vehicle heights.
Assembly Stations: Creating a height-adjustable workbench for complex mechanical assembly.
Maintenance & Reliability
Our lift tables are built for 24/7 industrial environments:
Easy Access Hydraulics: The power unit is positioned for quick oil changes and filter cleaning.
Durable Powder Coating: High-quality finish resists scratches and industrial chemicals.
Plug-and-Play Installation: Most stationary models are ready to use as soon as they are connected to power.
FAQ
Q: Can the lift table be installed in a pit?
A: Yes. Our stationary models are designed for floor mounting or pit installation. A pit installation allows the platform to be flush with the floor when fully lowered, making it easy to roll pallet jacks onto the table.
Q: What is the lead time for custom platform sizes?
A: While standard sizes are often in stock, custom-engineered lift tables typically have a lead time of 15-25 days depending on the complexity of the requirements.
Q: Is a 3-phase power supply required?
A: For heavy loads (over 2000kg) or high-frequency lifting, we recommend a 3-phase supply (380V/415V). However, smaller models can be configured for standard 220V single-phase power.
