The Simple Answer
A forklift rating like '2,000 kg at 500 mm load center' means:
- The forklift can lift 2,000 kg only if the load's center of gravity is within 500 mm of the fork face
- If the load is longer, wider, or oddly shaped so the center of gravity falls at 600 mm — the same forklift can now lift significantly less
The physics: A forklift is a lever. The load in front is trying to tip the truck forward. The counterweight in back is holding it down. The further forward the load's center of gravity moves, the more leverage it has against the counterweight. More leverage = less capacity.

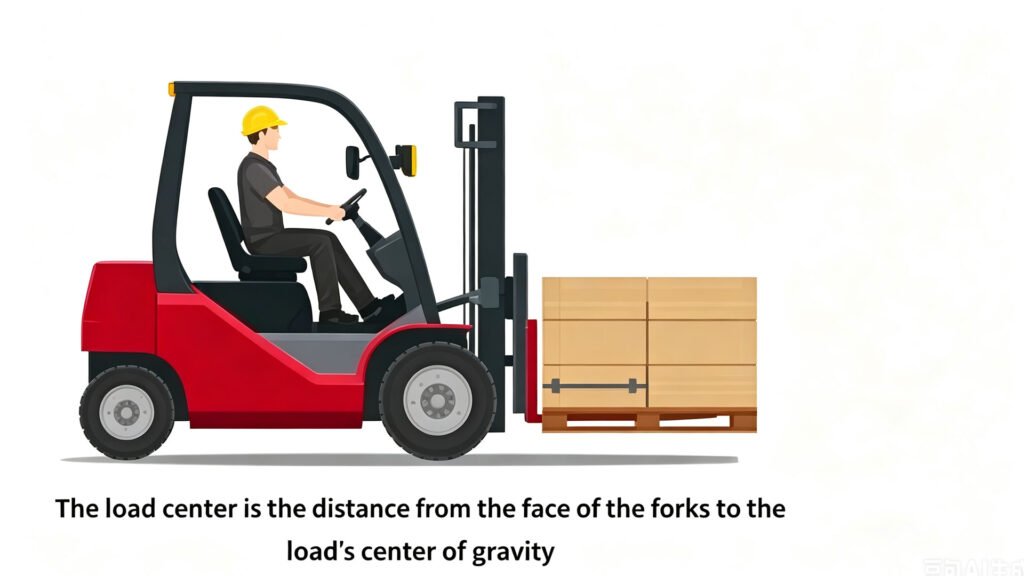

What Is the Load Center on a Forklift
The Numbers
| Load Center | Capacity of a '2,000 kg @ 500 mm' Forklift |
|---|---|
| 400 mm | ~2,200 kg (increased capacity) |
| 500 mm | 2,000 kg (rated capacity) |
| 600 mm | ~1,700 kg |
| 700 mm | ~1,450 kg |
| 800 mm | ~1,250 kg |
| 900 mm | ~1,100 kg |
| 1,000 mm | ~950 kg |
The further out the load center, the less you can lift. This is not a defect. It's the same physics that makes a seesaw work.
How to Find the Load Center of Your Load
Step 1: Measure the length of the pallet or load in the direction of the forks.
Step 2: Divide by 2.
That's the load center.
Example:
- Standard pallet: 1,200 mm long ÷ 2 = 600 mm load center
- Short pallet: 1,000 mm long ÷ 2 = 500 mm load center
- 48' standard pallet (≈1,220 mm): 610 mm load center
Problem: Most standard forklifts are rated at 500 mm load center. Most standard pallets are 1,200 mm long — that's a 600 mm load center. If you buy a '2 ton forklift rated at 500 mm load center' and move standard pallets, your actual capacity is about 1.7 tons, not 2 tons.
This is the most common mistake in forklift buying.
500 mm vs 600 mm Load Center — What's the Difference?
| Spec | 500 mm Load Center | 600 mm Load Center |
|---|---|---|
| Typical market | Asia, Japan, some European | North America, Europe, global standard pallets |
| Typical pallet size | 1,000–1,100 mm | 1,200 mm |
| Effective capacity at 600 mm load center | ~85% of rated capacity | 100% of rated capacity |
| When to choose | Short pallets, compact loads | Standard 1,200 mm pallets |
If you operate in North America or Europe with standard 48' × 40' pallets, a 600 mm load center forklift is the right choice. The rated capacity is the real capacity for your load.
If you buy a 500 mm load center truck for 1,200 mm pallets, you lose 15% of your rated capacity immediately.
Real-World Example
You buy a 2.5-ton forklift rated at 500 mm load center for your warehouse. Your pallets are standard 1,200 mm (load center = 600 mm).
What you think you bought: 2,500 kg capacity. What you actually have: ~2,125 kg capacity (85% of rated).
You load a pallet weighing 2,300 kg. The forklift lifts it off the ground, but the rear wheels feel light. On a slight incline or a turn, the rear end lifts and you lose steering control. The operator can't stop the load from shifting. This is how tip-overs happen.
The spec sheet wasn't wrong. But the spec sheet assumed a load length that doesn't match your actual operation.
Load Center and Fork Length
The load center also determines what fork length you need. The forks should extend at least two-thirds of the pallet length.
| Pallet Length | Recommended Fork Length | Minimum Acceptable |
|---|---|---|
| 1,000 mm | 900–1,000 mm | 700 mm |
| 1,200 mm | 1,070–1,200 mm | 800 mm |
| 1,400 mm | 1,200–1,370 mm | 930 mm |
If the forks are too short, the load center shifts forward (the pallet overhangs the forks) and you lose capacity. If the forks are too long, they hit the pallet behind in the rack.
How Load Center Affects Attachments
Adding attachments (side-shifter, fork positioner, paper roll clamp) pushes the load forward by the thickness of the attachment. This increases the effective load center even if the pallet itself hasn't changed.
| Attachment | Added Load Center Distance | Capacity Loss (Typical) |
|---|---|---|
| Side-shifter | 50–100 mm | 10–15% |
| Fork positioner | 100–150 mm | 15–25% |
| Paper roll clamp | 200–400 mm | 25–40% |
| Rotator | 200–500 mm | 30–50% |
Rule of thumb: Every 100 mm of added load center distance costs roughly 15–18% of rated capacity. When buying a forklift with attachments, you need to spec the truck for the actual load center — not the base rating.
The Bottom Line
The load center is not a technical detail for engineers. It's the number that determines whether the forklift you're buying can actually lift the loads you move.
- Standard pallet (1,200 mm) = 600 mm load center
- Buy a forklift rated at 600 mm load center for standard pallets
- If the spec sheet says 'rated at 500 mm' and your pallets are 1,200 mm, your real capacity is ~15% less
- Add attachments and the load center moves further out — capacity drops more
Check the load center before you buy. Not after.
