Description

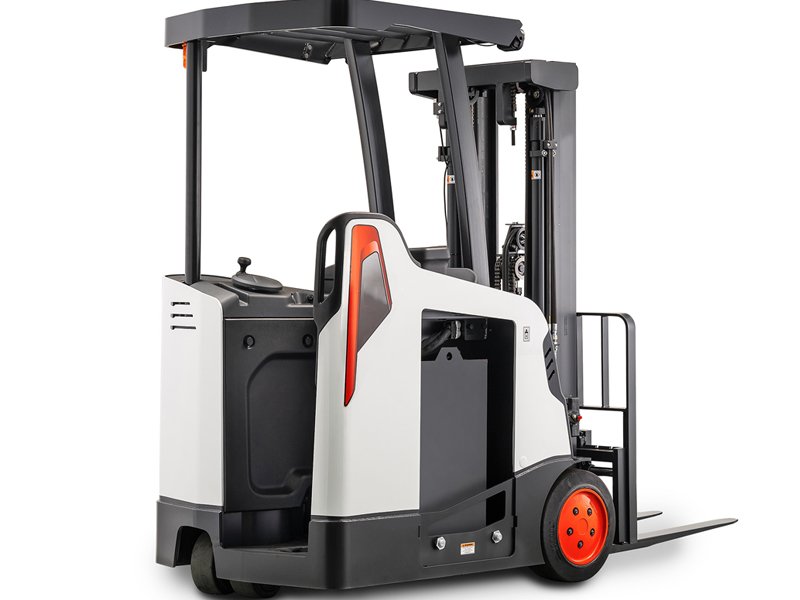

How Much Space Does a Stand-Up Forklift Need?
| Spec | Typical Range |
|---|---|
| Right-angle aisle width | 2,600–3,100 mm |
| Turning radius | 1,400–1,800 mm |
| Overall width | 1,000–1,200 mm |
| Overall length (to fork face) | 1,800–2,200 mm |
A typical sit-down forklift needs 3,500–4,200 mm aisle width. Switching to stand-up reclaims 30–40% of your aisle space — which means more rack rows, more pallet positions, lower per-pallet rent cost.
Typical Specifications (by Capacity Range)
| Rating | Load Center | Lift Height | Battery | Travel Speed |
|---|---|---|---|---|
| 0.8–1.0 ton | 500 mm | up to 4,500 mm | 24V–48V Li-ion / Lead-acid | 9–12 km/h |
| 1.2–1.5 ton | 500 mm | up to 5,000 mm | 48V Li-ion / Lead-acid | 10–13 km/h |
| 1.8–2.0 ton | 500 mm | up to 5,500 mm | 48V–80V Li-ion / Lead-acid | 10–14 km/h |
Full spec sheet with measured quiescent current, ramp grade, and real cycle life available on request for your target capacity.
Best Applications
| Application | Why Stand-Up Works |
|---|---|
| Narrow aisle warehouse (≤3 m) | Tight turning radius fits where sit-down can’t |
| E-commerce/3PL fulfillment | Operators dismount 50+ times/shift — saves 15–20s per cycle |
| Cold storage / freezer | Lithium battery maintains capacity in -20°C; no acid to freeze |
| Dock-to-staging transfer | Quick in-and-out, no seat climb |
| Multi-shift operations | Side-pull battery swap in 2 minutes |
Not Ideal For
| Application | Why |
|---|---|
| Outdoor / rough floors | Small solid tires, jarring ride, poor traction on debris |
| All-day continuous driving (7+ hrs seated needed) | Standing all shift fatigues the operator |
| Heavy ramp traffic | Less rear weight bias than sit-down |
| >3.5 ton loads | Most stand-up models top out at 2.5–3.0 ton |
| Steel / lumber / heavy fabrication | Rough floors destroy solid tires in 4–6 months |
Key Features to Look For
Lithium battery (recommended)
- No watering room needed — park anywhere
- 2-hour full charge, 40-minute opportunity charge to 80%
- Side extraction tray — swap in 2 minutes, no overhead hoist
- No acid, no gassing, no floor corrosion
AC drive motor
- 2 moving parts — no brushes, no commutator rebuild at 2,000 hours
- Regenerative braking recovers 8–15% energy in stop-start operation
Curtis or ZAPI controller (not unbranded white-label boards)
- Industry standard diagnostics, parts available globally
Operator Presence Sensing (OPS)
- Truck won’t drive unless operator is in position — OSHA-aligned
Estimated Price Range (FOB Tianjin)
| Capacity | Price Range | Typical Configured Price |
|---|---|---|
| 0.8–1.0 ton | $3,500–$4,500 | ~$4,000 |
| 1.2–1.5 ton | $4,200–$5,800 | ~$5,000 |
| 1.8–2.0 ton | $5,500–$7,500 | ~$6,500 |
| 2.5–3.0 ton | $7,000–$9,500 | ~$8,200 |
Price varies by: lift height, battery type (Li-ion / lead-acid), attachment options (side-shifter, fork positioner), and accessories (cold storage package, blue light, strobe beacon).
Lead Time & Shipping
- Lead time: 20–35 days from deposit
- Packaging: Steel crate + shrink wrap
- Port: FOB Tianjin or CIF to your port
- Documents: CE certificate, SGS inspection report, Bill of Lading, Certificate of Origin
- Customization: OEM branding, color, decals, and voltage available
When to Buy Stand-Up vs Sit-Down
Buy stand-up if:
- Your aisles are under 3.2 m wide
- Operators get on and off the truck multiple times per hour
- You’re setting up a new warehouse and want maximum rack density
- You want lithium batteries with side-pull swap for multi-shift
Buy sit-down if:
- Your aisles are 3.5 m+
- Operators drive continuously for 6+ hours per shift
- You move heavy loads (3+ ton) every cycle
- Your floors are rough, outdoor, or uneven
Still not sure? Send us your warehouse layout and load cycle. We’ll tell you which configuration fits — even if it’s not one of ours.
